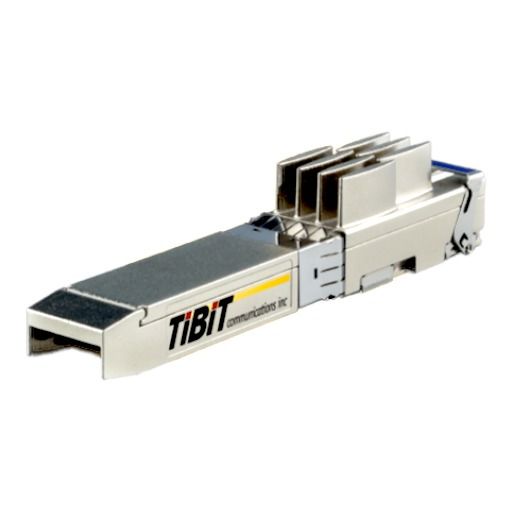

TiBit 10G EPON/XGS-PON MicroPlug OLT (N0/PR10+) 10km I-Temp Transceiver [TXM-MPOLT-05I]

The Tibit MicroPlug OLT, TXM-MPOLT-05I, enables service providers to quickly deploy high-bandwidth services in an agile, elastic, and scalable way. This technology requires less space and power than any other OLT product on the market, including very high capacity deployments. The modularity and remote management capabilities of this SFP+ OLT make it ideally suited for virtualized PON management solutions and Software Defined Network (SDN) implementations such as the Open Networking Foundation's CORD and Broadband Forum OB-BAA.

• High-speed networks requiring point-to-multipoint economics
• University Campus classooms, labs, offices, etc...
• Business Parts/Campus users
• Hospitality and Health Care Deployments
• Short-reach Carrier Deployments
• Data Center PON
• Wireless Back/Mid-Haul

• World’s only enterprise pluggable OLT

• SFP+ 10G Optical Transceiver with Embedded Universal Ethernet-to-PON MAC Bridge
• Software Configurable, Symmetric 10G/10G Rates for XGS-PON or 10G EPON Protocols
• Supports 500 Alloc-ID/1000 LLIDs and Jumbo Frames up to 900KB/12.5KB (for XGS/EPON, respectively)
• In XGS-PON Mode: Compliant With ITU-T G.9807.1 Specifications
• In EPON Mode: Compliant With IEEE802.3av, SIEPON and DPoE Specifications
• IEEE 802.1AE MACSec uplink encryption
• IEEE 1588v2 & SyncE timing and sync support
• Class N0/PR10+ Optical Power Budget
  • 1577nm Cooled DML Laser
  • 1270nm APD/TIA Burst Receiver
• Integrated Digital Diagnostics And Monitoring (SFF-8472), and Burst RSSI
• Single Fiber SC/UPC Receptacle
• Industry-unique modularity and scalability

• Optics Class (ITU/IEEE): "N0" / PR10+
• Storage Temperature: -40 to 85°C
• Industrial Case Temperature: -20 to 85°C)
• Relative Storage Humidity: 0 - 95% Non-condensing
• Relative Operating Humidity: 5 - 80% non-condensing
• Min. Supply Voltage: -0.3V
• Max. Supply Voltage: 4V
