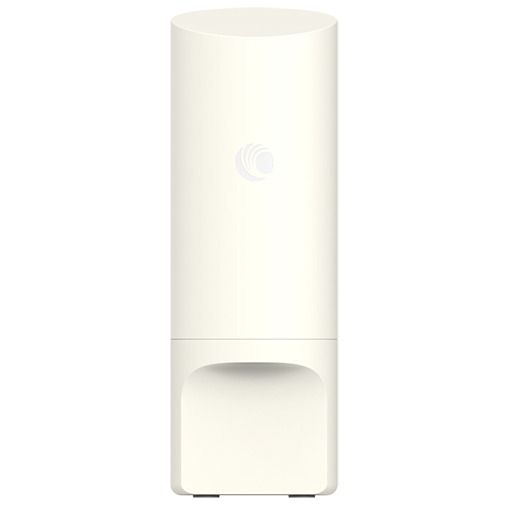

Cambium XV2-2T Wi-Fi 6 Outdoor Access Point [XV2-2T0XA00-US]
The XV2-2T delivers Cambium 30VDC power out, or 48VDC for PoE devices connected to the second gigabit Ethernet port. Ideal for connecting the XV2-2T to a Cambium subscriber module (SM), Terragraph CN (connection node), or any IP and Ethernet device such as a security IP camera, or another Wi-Fi access point.
The new IEEE 802.11ax standard delivers higher network speeds and enables more connected devices at higher packet quality. In outdoor deployments, the IEEE 802.11ax standard delivers greater range by boosting the RF frame preamble by 3dB and improved signal quality with increased guard interval vs previous Wi-Fi technology. The XV2-2T is fully backward compatible with existing Wi-Fi technology and prepares a network for higher growth and greater density of Wi-Fi connected devices.
Product Features:
- Dual radio 802.11ax
- 2.5GbE Uplink Ethernet
- 1GbE with power out
- Outdoor IP67 rated, -40°F to 149°F (-40°C to 65°C)
- FCC: Ch 1–11, 36–48, 52–64, 100–144, 149–165
- Radios: 5GHz 802.11 a/n/ac Wave 2/ax, 2x2, 2.4GHz 802.11 b/g/n/ax, 2x2 BLE 4.1
- Wi-Fi: 802.11 a/b/g/n/ac Wave 2/ax
- SSID Security: WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), Open
- Max PHY Rate: 5GHz radio 1,201Mbps, 2.4GHz radio 573.5Mbps
- Ports: 1 x IEEE 100/1000/2500 Mbps, 1 x IEEE 10/100/1000 Mbps Ethernet with SW configurable passive PoE output of 30V or 48V up to 30 Watts
- Antenna: 5GHz 9.3dBi, Omni, 2.4GHz 5.3dBi, Omni
- Max EIRP: 5GHz 36dBm, 2.4GHz 33dBm
- LTE Filter Band: 38, 40
- Power: 20W max Up to 50W when powering an auxiliary device
- Security: Kensington lock slot
- Operation Temperature: -40°F to 158°F (-40°C to 70°C)
- Operational Modes: Standalone, Cloud managed cnMaestro or VM, Cloud managed XMS
- Authentication Encryption: 802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS MAC authentication to local database or external RADIUS
- Mesh: Multi-hop, either band
- RF Management: Multimodal RF optimization supporting AutoCell performed in the intelligent edge AP. Out-of-band RF spectrum analysis, radio self test network assurance, RF monitor with chn/noise/interference Data rate pruning and minimum data rates
- Network: LACP (802.3ad) ,TCP connection log, NAT logging firewall, DHCP server, L2, L3 or DNS based access control, VLAN Pooling, RADIUS attribute VID, VLAN per SSID per user
- Wi-Fi Protocols: VHT MCS rates, 16/64/256/1024-QAM, 20/40/80 MHz, TWT, Long OFDM Symbol, Transmit beamforming, Airtime Fairness, AMSDU, AMPDU, RIFS, STBC, LDPC, MIMO Power Save, MRC, BPSK, QPSK, CCK, DSSS, OFDM, OFDMA, UL/DL MU-MIMO, IEEE 802.11 a/ac/ax/b/d/e/g/h/i/k/n/r/u/v
- (1) US Cambium Networks XV2-2T Wi-Fi 6 Access Point
