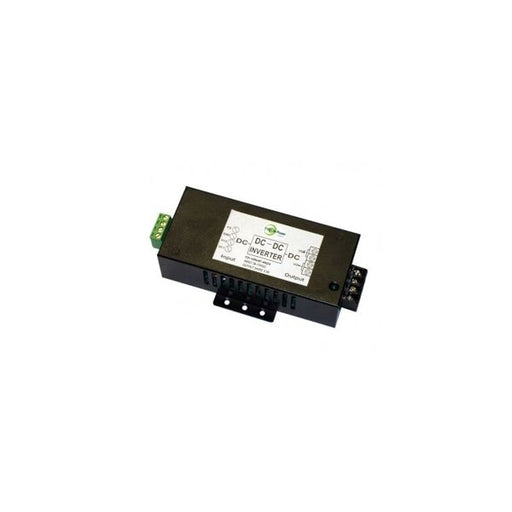

Tycon Systems 18-36VDC In 56V 1.25A 70W Regulated Out DCDC Isolated Voltage Converter [TP-VRHP-2456]
TP-VRHP-2456
by TYCON Systems
Original price
$174.00
Original price
$174.00
-
Original price
$174.00
Original price
$174.00
Current price
$174.00
$174.00
-
$174.00
Current price
$174.00
The TP-VRHP-2456 is a 70W voltage converter/regulator which accepts an input of plus or minus 18VDC to 36VDC and provides a regulated output of 56VDC @ 1.25A 70W. These units are perfect for providing 56VDC voltage from 24VDC battery banks.
Product Features
• High Output, Short Circuit Protected
• Metal Enclosure, DIN Rail Mounting
• Industrial Temperature Operation
Product Applications
• Security Systems
• Remote Power Systems
• Telecom Applications
• Wireless Base Stations
Product Specifications
• DC Input Voltage Range: 18 to 36VDC
• DC Voltage Output: 56VDC @ 1.07A
• Maximum Power: 60W
• Efficiency: >85%
• Load / Line Regulation: 5% / 1%
• Ripple / Noise: 2% / 5%
• Isolation Voltage / Ohms: 1500VDC Min. / 100M Ohms Min
• Wire Gauge: 12AWG Max
• Protections: Short Circuit, Overvoltage, Overload
• Operating Humidity: 0 to 90% RH
• Size: 5.24 x 3 x 1.5" (133 x 75 x 38mm)
• Weight: 10.5oz (298g)
Product Documentation
TP-VRHP-2456 Datasheet
Tycon Power Learning Center Presentation
