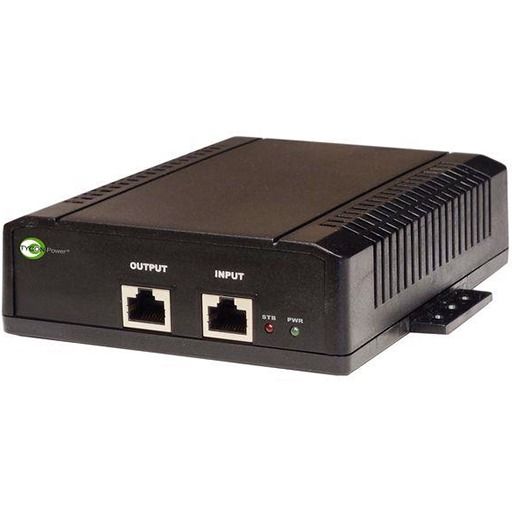

Tycon Systems 40-72VDC In 56V Out 90W 5Gigabit DC to DC Conv and 802.3bt PoE Inserter [TP-DCDC-4856GD-BT]

The Tycon Power 802.3bt DC to DC PoE injector is fan-less and uses natural air flow for cooling. It comes with DIN rail adapters to provide mounting to any standard DIN Rail commonly used in industrial installations. It can also be wall mounted.

• 40-72VDC Input, 802.3bt 112W Output
• Up to 5Gigabit Data Passthrough with Surge Protection
• DIN Rail Mounting (Adapters Included)

• Input Voltage: ± 40V to 72VDC, Dual Inputs
• Input Current:
        3.6A @ 40VDC IN (Full Load)
        2.6A @ 56VDC IN (Full Load)
        2.0A @ 72VDC IN (Full Load)
• Output Voltage: IEEE802.3bt 56VDC ; Load Reg = 5%, Line Reg = 1%
• Output Current / Max Watts: 2.0A / 112W
• Efficiency: >80% 40-72VDC Input
• Protections: Short Circuit, Reverse Voltage, Over Voltage (59V)
• Over Current Protection: 110 ~ 130% ; Auto Recover
• Data Passthrough: 10/100/1000/5000Mbps ; Gigabit
• Safety Standards: UL 1950 ; CSA 22.2 ; TUV EN60950-1
• EMC Standards: FCC Class A ; EN55022 Class A
• Connections: Removable Wire Terminal
• Wire Size: 12AWG Max
• LED Function:
        Green Power LED = Valid 802.3bt Detection
        Red STB LED = Input Power OK, No valid 802.3bt Detection
• Mounting: Wall Mount or DIN Rail (Adapters Included)
• Operating Temperature: -40°F to 158°F (-40°C to +70°C)
• Humidity (RH): 5% - 90% Non-Condensing

(1) Set of DIN rail adapters
