Tycon Systems 65 x 28 x 18in Aluminum Ground Mount Enclosure [ENC-AL-65x28x18]
ENC-AL-65x28x18
by TYCON Systems
Original price
$2,604.00
Original price
$2,604.00
-
Original price
$2,604.00
Original price
$2,604.00
Current price
$2,604.00
$2,604.00
-
$2,604.00
Current price
$2,604.00

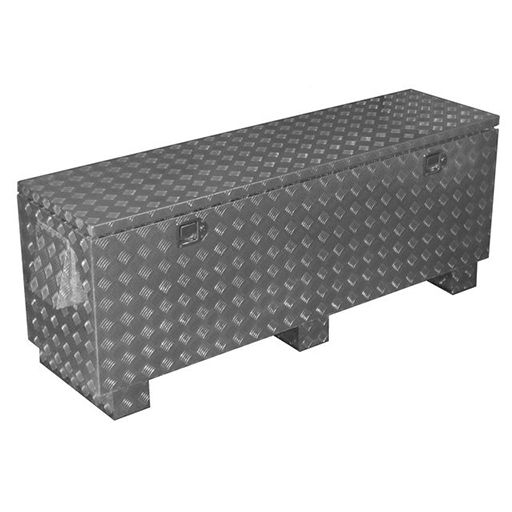

The Tycon Solar ENC-AL-65x28x18 is a gasket sealed aluminum enclosure designed for battery and equipment storage. It is vented and has two locking latches for security. The enclosures are designed to be mounted on a level pad or slab. There are 8x 20mm holes in the back panel to accommodate up to 8 Cable Glands (4 RJ45 Cable Glands and 4 Hole Plugs included). There is a security bracket on the back of the enclosure so it can be easily chained to the solar mount pole for security or any other static structure. The enclosure includes mounting features inside to mount DIN Rails or a metal plate for mounting of customer electronics. The bottom standoffs allow for easy maneuvering with a fork lift or pallet jack. The enclosure comes with a mounted PowerVent 24/48VDC 120mm fan with 45°C thermostat.Product Features• Weatherproof, UV Resistant, Outdoor Enclosure• Double Keyed Locking System• Diamond Plate Aluminum• Rubber Gasket Nipple Hinged Top• Dual Screened Weatherproof Vents• Heavy Duty Bottom Standoffs• Welded Security Shackle to Chain Lock in PlaceProduct Applications• Battery Enclosure• Backup Power Systems• Equipment Enclosure• Equipment SecurityProduct Specifications• Type: Vented Enclosure• Weatherproofing: IP65• Material 2.0mm Aluminum Checker Plated• Material Struts: 3.0mm Aluminum Flat Plate• Material Back Rack: 4.0mm Aluminum Flat Plate• Enclosure External Size: 69" x 30.25" x 23.5" (1753 x 768 x 597mm)• Internal Dimensions: 64.75" x 27.25" x 19" (1645 x 693 x 483mm)• Net Weight: 68 lbs (31kg)
