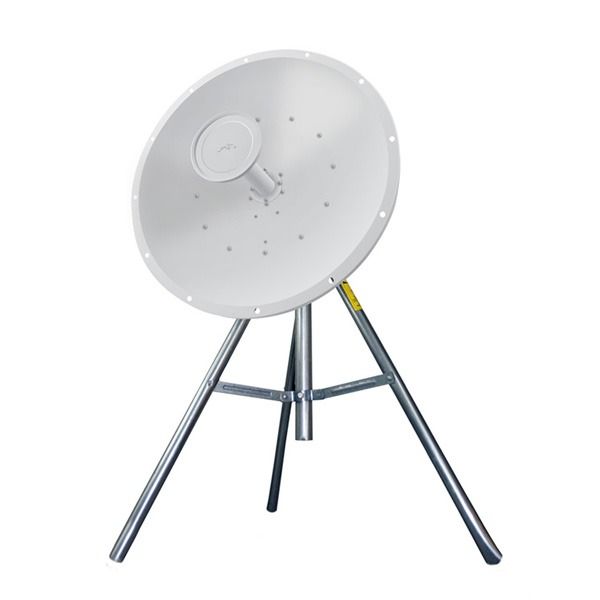

Ubiquiti RocketDish 2.4GHz 24dBi Dual-Pol Parabolic Antenna [RD-2G24]

Ubiquiti Networks RD-2G24 is a 24dBi parabolic dish antenna operating on 2.4GHz, designed to work with Rocket M2 radios to create powerful 2x2 MIMO PtP bridges. Full mating bracket and weatherproof RF jumpers included.

• Frequency Range: 2.3-2.7 GHz
• Gain: 24 dBi
• Hpol Beamwidth: 3.8 deg. (Rx Dish) / 6.6 deg. (Tx Dish)
• Vpol Beamwidth: 3.8 deg. (Rx Dish) / 6.6 deg. (Tx Dish)
• F/B Ratio: -50 dB (Rx Dish) / -65 dB (Tx Dish)
• Max VSWR: 1.6:1
• Dimensions: 648 mm diameter
• Weight: 9.8 kg
• Wind Survivability: 120 mph
• Wind Loading: 113 lb @ 100 mph
• Polarization: Dual Linear
• Cross-pol: Isolation 35 dB min
• ETSI Specification: EN 302 326 DN2
• Mounting: Universal pole mount, Rocket M bracket, and weatherproof RF jumpers included

(1) Antenna Dish

(1) RP-SMA to RP-SMA weatherproof jumper cable

(1)  Set of Tower mounting hardware
