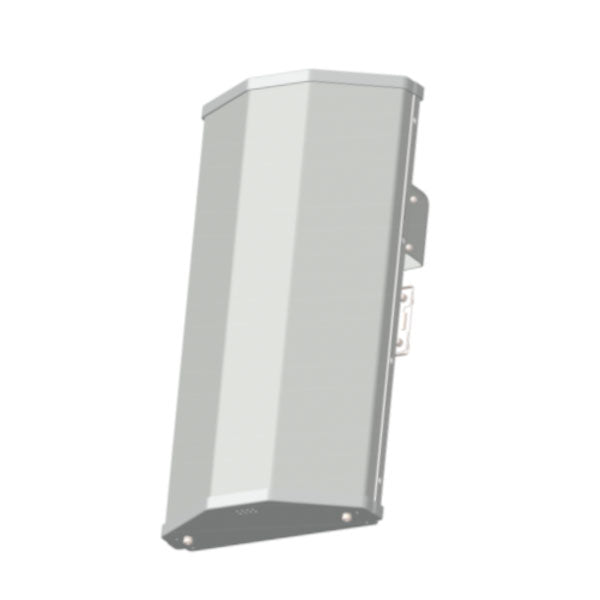

Alpha Wireless 4.9-5.9GHz, 8 Port, 65°, 18dBi, Panel Antenna [AW3798-T2-H]
The AW3798-T2-H has been developed for a six-sector site application across the U-NII 1, 2, 3, and 4 (4900 – 5970 MHz) and 4.9GHz public safety radio bands. Each AW3798-T2-H houses two 4-port sectors with 60 degree Azimuth separation. When combined with two other AW3798-T2-H panels positioned at 120 degree Azimuth separation, this results in 360 degree Azimuth coverage with sectors positioned at every 60 degrees.
The small form factor reduces antenna count on the tower which saves in tower rental cost. The antenna comes with radio mounting and protective cover for two Cambium ePMP3000 radios and GPS antennas. The sector has four ports with vertical and horizontal polarization and is compatible with 4×4 multi-user MIMO (MU-MIMO) for maximum throughput. The antenna’s 30 dB front to back enables three channel frequency reuse using three AW3802 (6 x 60 degree sectors) panels on one tower.
The AW3798-T2-H panel antenna’s 25” (630mm) height by 13” (322mm) width provides a compact solution that occupies minimal tower space. Its adjustable mounting brackets allow smooth adjustment of the elevation downtilt from 0 degree to 10 degree.
Panel antennas are the most used solution to provide directive coverage in a wireless network. These panel antennas offer multiple ports and frequency bands and are designed to deliver high gain across the sector. They are commonly available with 33 degree, 45 degree, 60 degree, 90 degree, and 120 degree beamwidths. Alpha Wireless provides a wide array of sector panel solutions that meet the needs of the most intricate deployment requirements. Alpha Wireless is your antenna partner. We advise, design and deliver.
Features:
- Covers U-NII bands 4900 – 5970MHz
- Two 4 port sectors orientated with 60 degree Azimuth separation
- Mounting points on the back of antenna for two ePMP 3000 Cambium Radios
- Horizontal and Vertical antenna polarization for use with the ePMP 3000
- SMA Port Connectors
- Compact form factor
- Mounting Bracket with variable elevation tilt
- Manufactured in Ireland
