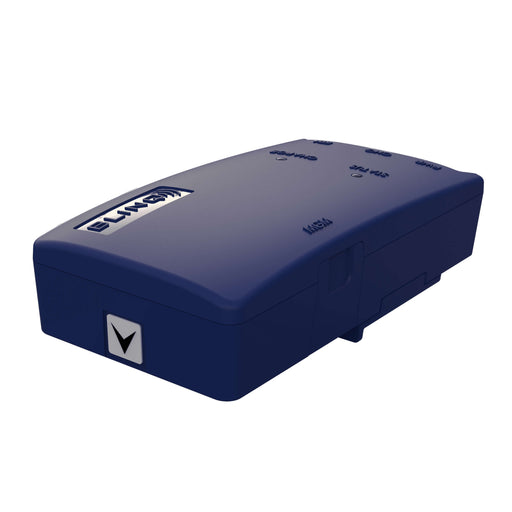

BLiNQ Networks Pointlinq Link performance optimization and alignment tool

The BLiNQ PointLiNQ includes 20 PointLiNQ tokens featuring CBSD CPE registration, link performance measurement, eNB list and CPE link performance reports storage.

• CPE Installation Optimization for Band 42, 43 and 48
• Performs Survey Prior to Installation
• Generates List of Available ENBs from Server
• Performance Predictions: The app computes certain performance predictions that will enable a fast and error free process prior to CPE connectivity
• Real Time Connection Statistics: Scans and collects KPI values at each position
• CPE CBSD Registration: Performs single step CBSD registration right from the app
• Iperf Speed Test: Real performance in up to 30 grid patterns
• Generates Final Report: Generates and submits final report when installation is completed

• Communications: 1T1R Wi-Fi 802.11 b/g/n (2.4G)
• Security/Encryption: AES128/256-CBC
• Authentication: WEP64/128, AES, WPA, WPA2, WAPI
• Connectors: 10/100BASE-T Ethernet with 802.3AF POE PSE (15.4 W)
• Console: USB Virtual Serial Ports (VCP)
• Azimuth: 28° + CPE Azimuth Antenna BW**
• Elevation: 25° + CPE Elevation Antenna BW**
• Operational Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Charging Temperature: 10 °C to 45 °C (50 °F to 113 °F)
• Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)

Product Includes:

(1) PointLiNQ Link performance optimization and alignment tool
(20) PointLiNQ tokens
