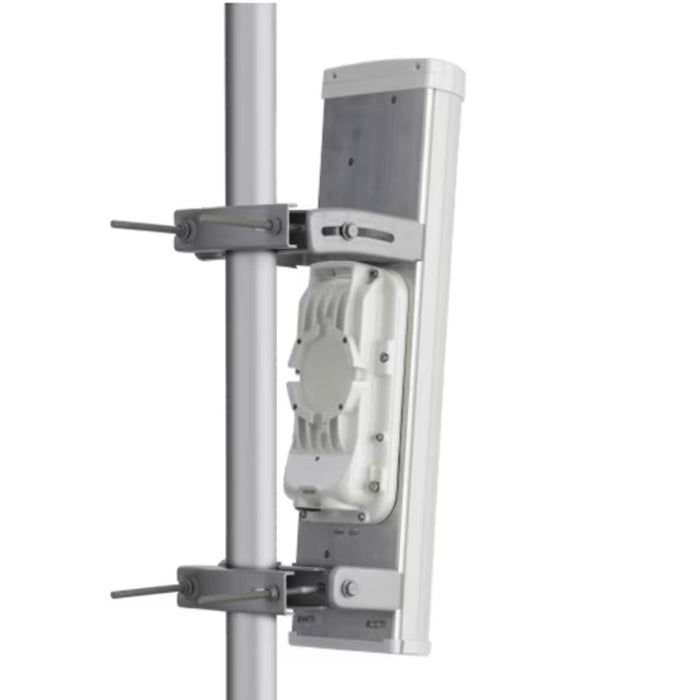

Cambium PMP450i 3GHz Integrated Access Point 90 Degree Lite Version [C030045AL02A]

Cambium Networks industry-leading 450 platform includes the all new PMP 450i and PTP 450i radios. The 450i product platform is the most scalable industrial-grade wireless broadband solution available.

Product Features:

• Supports the entire band, whether in 5GHz or 3GHz
• Designed to meet IP-66 and IP-67 standards to withstand harsh environments
• Provides industry leading noise isolation for improved performance
• Triples the processing power compared to PMP450
• Allows for greater flexibility for deployment by adding a camera or other PoE directly
• Optimized for frequency re-use (>35 dB F/B), high gain, null fill and predictable performance, or Integrated 10° sector antenna for highly directional sectors
• The Cambium Networks 450i is capable of up to 300Mbps per sector in a 40MHz channel

Product Specifications:

• Frequency Range: 5MHz, 7MHz, 10MHz, 15MHz, 20MHz, 30MHz or 40MHz
• Channel Width: 5MHz, 10MHz, 15MHz, 20MHz, 30MHz or 40MHz
• MAC (Media Access Control) Layer:
• Physical Layer: 2x2 MIMO OFDM
• Ethernet Interface: 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant)
• Protocols Used: IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP
• Network Management: IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestroT
• MTU: 1700 bytes
• VLAN: 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID
• Subscriber Per Sector: Up to 238 - *Lite models limited to 20 Subscribers, License Key (C000045K010A) available to remove this limit
• ARQ: Yes
• Maximum Deployment Range: Up to 40 miles (64 km)
• Latency: 3ms - 5ms, typical
• GPS Synchronization: Yes, via Autosync (CMM5 or UGPS)
• Quality of Service: Diffserve QoS
• Integrated Sector Antenna: 90° Azimuth, 8° Elevation (3dB roll-off), 2° Electrical Down-tilt, Dual polarity, or 10° Azimuth, 10° Elevation (3dB roll-off), Dual polarity
• Antenna Gain: 17dBi ± integrated 90° sector , 23dBi ± 1dBi integrated 10° sector
• Maximum Transmit Power: +28 dBm (MIMO, Combined H+V) (+25dBm for 3GHz) (may be limited by regulations)
• Maximum EIRP: +43dBm combined output (may be limited by regulations)
• VSWR: 1.5, Reflection Coefficient 0.2, Reflected Power 4%, Return Loss 14dB
• Power Control: ATPC (Automatic Transmit Power Control) at system level, all Subscribers implement ATPC
• Surge Suppression: EN61000-4-5: 1.2us/50us, 500 V voltage waveform Recommended external surge suppressor: Cambium Networks Model # C000000L033A
• Mean Time Between Failure: >40 Years
• Temperature / Humidity: -40°F to +167°F (-40°C to +75°C), 0-100% condensing
• Wind Survival: 322km/h (200mi/h)
• Power Consumption: 15W typical, 18W max, Using Aux port PoE for another device will increase power draw
• Input Voltage: 48V - 59V DC, 802.3at compatible
• Encryption: FIPS-197 128-bit AES, 256-bit AES (Requires Optional License)
