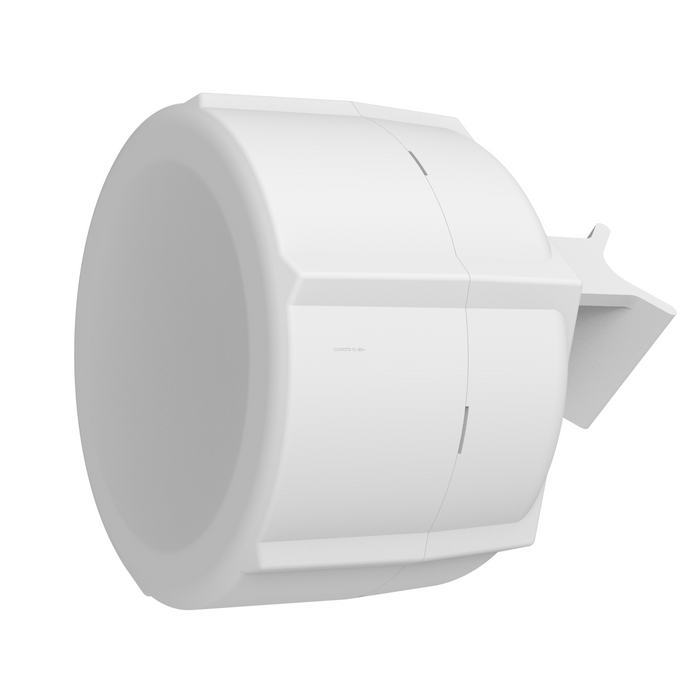

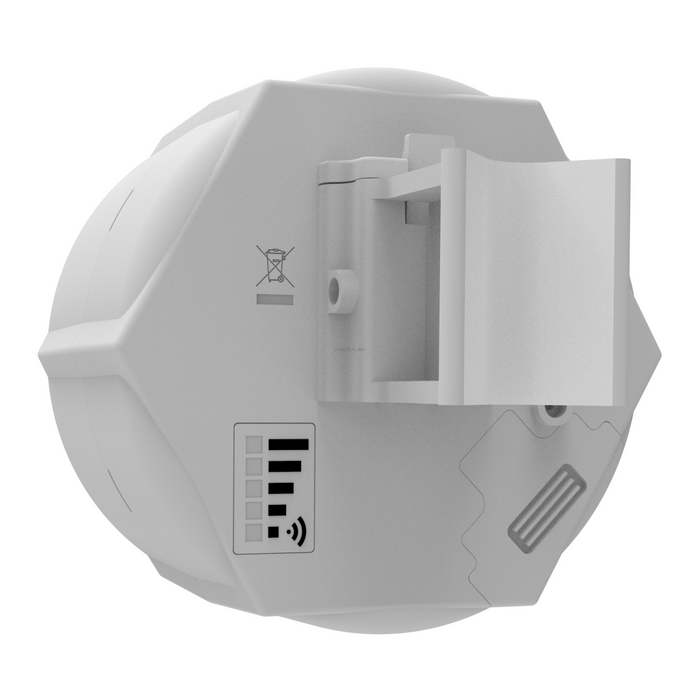

MikroTik SXT LTE6 802.3af/at 9dBi Carrier Aggregation Kit [RBSXTR&R11e-LTE6]
This product has been discontinued by MikroTik. Suggested replacements is the SXTR&FG621-EA
MikroTik SXT LTE6 kit is a device for remote locations that are within cellular network coverage. Due to its advanced LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones fail.
The new SXT LTE6 features a CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.
The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. It also has two Micro SIM slots for backup link. Unit is shipped with a 24 V power supply, but can support full range 18-57 V and is 802.3af/at compliant.
Product Specifications:
- Product code RBSXTR&R11e-LTE6
- CPU QCA9531 650 MHz
- Size of RAM 64 MB
- Storage 16 MB flash
- LTE antenna gain 9 dBi
- Antenna beam width 60° LTE category 6 (300 Mbps downlink, 50 Mbps uplink)
- 3G category R7 (21 Mbps downlinks, 5.76 Mbps uplink) R8 (42.2 Mbps downlink, 5.76 Mbps uplink)
- 2G category Class12
- Mini SIM slots 2
- PoE in Yes, on Ethernet 1
- PoE out Yes, on Ethernet 2, max out per port output (input < 30 V): 600 mA, max out per port output (input > 30 V): 400 mA max total out (A): 600 mA
- Supported input voltage 18 - 57 V (Passive PoE, 802.3af/at on Ethernet 2)
- Dimensions 140 x 140 x 103 mm
- Operating ambient temperature: -40°C .. +60°C
- License level 3
- Max power consumption 6 W
- LTE (FDD) bands 1(2100)/2(1900)/3(1800)/5(850)/7(2600)/8(900)/12(700)/17(700)/20(800)/25(1900)/ 26(850)
- LTE (TDD) bands 38(2600)/39(1900)/40(2300)/41n(2500)
- 3G bands 1(2100)/2(1900)/5(850)/8(900)
- 2G bands 2(1900)/3(1800)/5(850)/8(900)
- (1) MikroTik SXT LTE6 Kit
- (1) Power Adapter (24V 0.38A)
- (1) PoE Injector
- (1) Metal Ring
- (1) Pole Mounting Bracket
