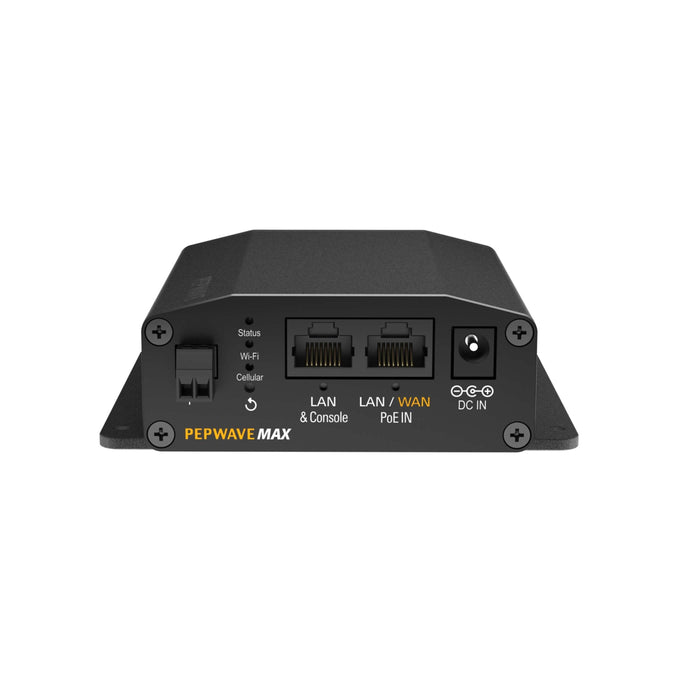

Pepwave MAX BR1 MINI LTEA Single Cellular Cat 7 Mobile Router with PrimeCare

The Pepwave BR1 Mini LTE-Advanced PrimeCare Edition is new for 2022 and completely redesigned with an upgraded processor and 300Mbps of router throughput, triple that of the previous model. The Mini is a complete mobile internet solution for travelers who are looking to use Cellular data as their primary mode of staying connected. This version has a CAT 6 modem (See additional information on Category-6 modems below) for additional cellular band support over the CAT-4 previous version and now has support for LTE-A carrier aggregation. The BR1 Mini accepts sim cards directly into its built-in cellular modem (one modem, 2 slots) that is compatible with AT&T, T-Mobile, Verizon as well as other carriers including carriers outside of the U.S. This newer generation BR1 Mini has upgraded WIFI 5 technology with 2.4ghz and 5ghz simultaneous dual-band support and includes optional licensing for enabling WIFI-AS-WAN and a Wired WAN port. The mini has two sim slots allowing you to load this router with multiple sim cards from multiple carriers allowing you to select which sim/carrier is in use by the modem. The signal from your cellular connection is then re-broadcasted wirelessly inside your coach or travel trailer using the unit's high-powered 802.11AC wireless functionality.

You can also utilize the mini's WiFi-As-Wan functionality (Advanced Feature Pack License required) to connect to external WiFi sources, enable the WAN port, enable hot failover and more. The Advanced Feature Pack License enables hot-failover of multiple WAN connections, WIFI-AS-WAN functionality (additional details below), enabled the wired WAN port, and enables ignition sensing functionality. Peplink offers discounts when this is purchased at the time of the sale of the router. PrimeCare licenses are non-refundable. If you do NOT need those features, you do not need the additional license (if you decide you want them in the future, the license can be purchased any time to unlock those features).

The unit's highly customizable web interface supports a variety of advanced routing features and will satisfy the needs of advanced users while being extremely easy to use for non-tech users as well. The unit accepts 12v inputs via the optional DC direct wire power cable or you can use the included AC adapter for 110v installation.

Product Specifications

• Software: Pepwave MAX Firmware
• WAN
• Support for PPPoE, Static IP, DHCP
• WAN Link Health Check
• Bandwidth Allowance Monitor
• Support for Dynamic DNS services
• IPv6 Support
• LAN
• DHCP Server for LAN Clients
• Extended DHCP Option
• DHCP Reservation
• DNS Proxy for LAN Clients
• VLAN on LAN Support
• Load Balancing

  • Intelligent Failover
  • Session Persistence
  • Per-Service Load Distribution
  • Multiple Algorithms

    • Weighted Balance
    • Priority
    • Overflow
    • Persistence
    • Least Used
    • Lowest Latency
    • Enforced
    • Fastest Response Time
• Complete VPN Solution

• PepVPN

• SpeedFusion

  •  Site-to-Site VPN

  •  SpeedFusion Hot Failover

  •  SpeedFusion WAN Smoothing

  •  256-bit AES Encryption

  •  Pre-shared Key Authentication

  •  Dynamic Routing

  •  PPTP VPN Server

  •  RADIUS, LDAP Authentication

• IPsec VPN (Network-to-Network)@

• Networking
  • NAT and IP Forwarding

  • Static Routes

  • Port Forwarding

  • Many to One, One to One NAT

  • NAT Pool

  • SIP ALG, H.323 ALG

  • UPnP, NAT-PMP

  • WINS Server
• Security
  • 128-bit WEP

  • WPA & WPA 2

  • Stateful Firewall

  • DoS Prevention

  • Web Blocking

• Advanced QoS

  • Individual Bandwidth Limit

  • Application Prioritization

  • SIP, HTTPS, VPN QoS

  • Custom Application QoS

• Global Positioning System
• Integrated GPS
• Device Location Map
• Location Tracking Data with InControl 2
• Fleet Management with InControl 2
• Captive Portal Support
  • Support for Wired and Wireless LAN Clients
  • Support RADIUS Authentication
  • Time and Usage Quotas on Open Access Mode
  • Built-in Customizable Splash Page
  • Social Wi-Fi Hotspot support
  • External Captive Portal support
• Certifications

• FCC
• CE
• RoHS

• Device Management
• Web Administrative Interface
• Command Line Interface
• InControl Cloud Management
• Email Notification
• Active Client and Session Lists
• Bandwidth Usage Statistics
• Syslog Service
• SNMP v1, v2c and v3

Package Content
• MAX BR1 Mini (HW3)
• 2x LTE Antennas (ACW-235)
• 2x Wi-Fi Dual Band Antennas (ACW-342)
• 1x GPS Active Antenna (ACW-232)
• 1x 12V 2A 4 Pin Power Supply (ACW-632)
