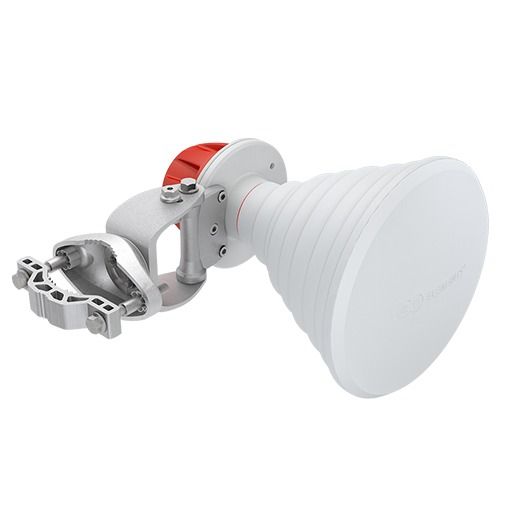

RF elements 40° Symmetrical Horn Antenna Gen2 with N-Female Connectors [HG3-CC-S40]

Symmetrical Horn CC Antennas Gen2 feature multiple improvements of RF performance and design, namely, optically lighter body and significantly improved bracket. Radome is made of more resistant material, and all of HG3-CC Gen2 antennas use only two radome sizes. HG3-CC Gen2 antenna is equipped with N-female connectors.

The RF elements 40 Degree Gen2 Carrier Class Symmetrical Horn Antenna is equipped with N-female connectors.

• Radio Connection: 2x N Female Bulkhead Connector
• Antenna Type: Horn
• Materials: UV Resistant polycarbonate, Polypropylene, Aluminum, Zinc, Stainless Steel
• Environmental: IP55
• Flame Rating: UL 94HB
• Pole Mounting Diameter: 30-80mm (we recommend as close to 80mm as possible)
• Temperature: -30°C to +55°C (-22°F to +131°F)
• Wind Survival: 160 km/hour
• Wind Loading: 44 N at 160 km/hour
• Mechanical Tilt: ± 25°

• Frequency Range: 5180MHz - 6400MHz
• Gain: 16.2dBi
• Azimuth Beam Width -3dB: H 27°
• Elevation Beam Width -3dB: V 27°
• Azimuth Beam Width -6dB: H 40°
• Elevation Beam Width -6dB: V 40°
• Front-to-Back Ratio: 35dB
• VSWR Max 5180-5850 MHz: 1.6
• VSWR Max 5850-6400 MHz: 1.9
• Beam Efficiency: 93%
• Polarization: Dual Linear H + V
• Impedance: 50Ohm

(1) Symmetrical Horn-Carrier Class Body

(1) Symmetrical Horn-Carrier Class Bracket

(2) M8 x 75mm Screw
