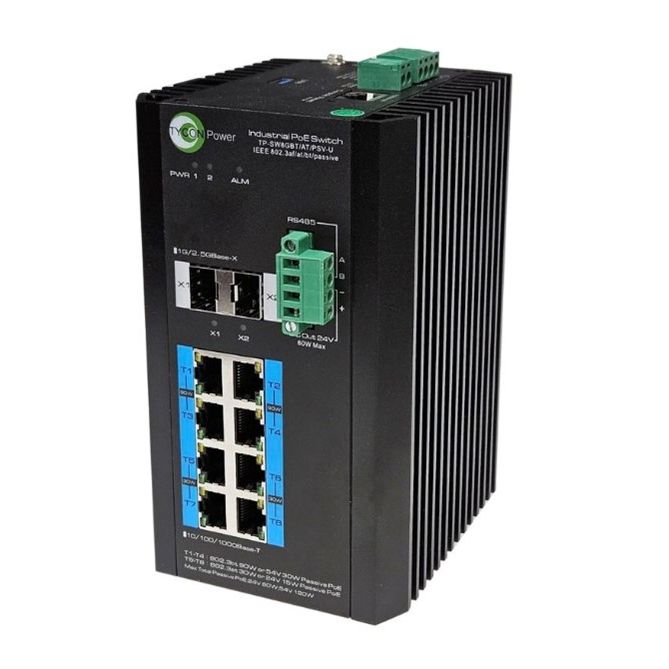

Tycon 8 Port Manageable GigE Industrial PoE Network Switch [TP-SW8GBT/AT/PSV-U]

The TP-SW8GBT/AT/PSV-U Power over Ethernet (PoE) 10 port Gigabit switches offered by Tycon® are fully automatic high speed Layer 2 Ethernet manageable switches. The switch has user defined PoE ports based on the following configurations:

– 4 x 802.3BT 90W or 54V 30W Passive PoE ports

– 4 x 802.3AT or 24V 15W Passive PoE ports

– 2 x 1.0/2.5Gb SFP fiber ports

This feature enables powering different devices from the same PoE Switch. The SFP ports accept standard single mode or multimode fiber transceivers or RJ45 Transceivers to provide 2 additional Ethernet ports.

With it’s DC/DC function the switch can supply PoE while being powered from a 12VDC to 57VDC input. At 57V input the switch can supply a total of 240W output power; 120W @ 24V input and 60W @ 12V input.

The PoE ports are manageable via the user interface or the console port. The switch features security protocols like SSH for secure access of the switch command interface. The command interface can be controlled via web browser, command line interface (CLI), TELNET, SSH or SNMP.

The switch supports PoE watchdog features which can detect and restart a connected device that stops working. The switch also supports Q-PoE (Quick PoE) to supply PoE power as soon as the switch is powered up instead of waiting for the switch to complete its boot sequence.

With L2 features, the switches provide better manageability, security, Quality of Service (QOS) features and performance. VLAN, Port Mirroring, Port Isolation, IGMP Snooping, LLDP, Storm Control, and PoE management are just some of the features available with this Industrial PoE Switch. Spanning Tree, Jumbo Frames, Ring Topology are also supported.

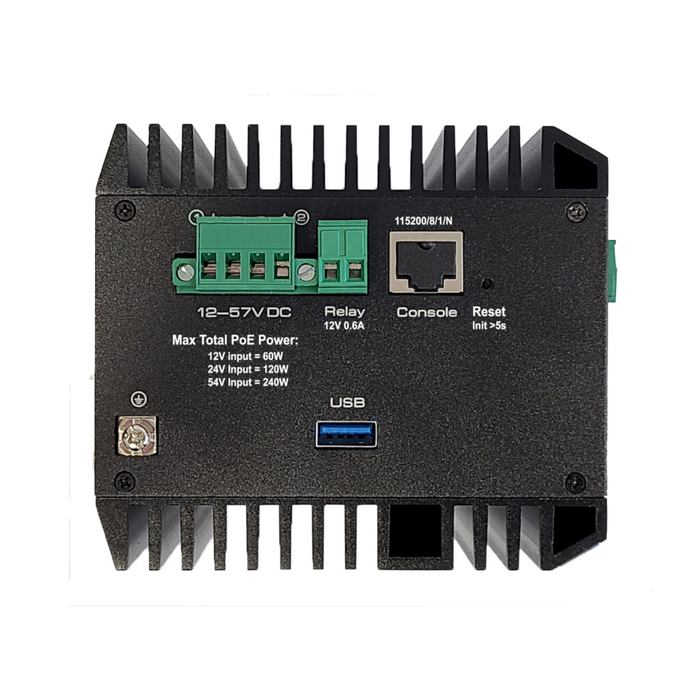

The switches feature two separate power inputs for primary and backup power. They require a 12VDC to 57VDC input on the wire terminal connector which is capable of accepting up to 12AWG wire.

The units are compatible with Category 5 or higher Ethernet cables with network distances up to 100m. The optical range for fiber ports is up to 120Km. The RJ45 connectors are shielded and grounded to the case. The units have surge protection on all ports. They have a wide operating temperature range for outdoor and industrial applications.
