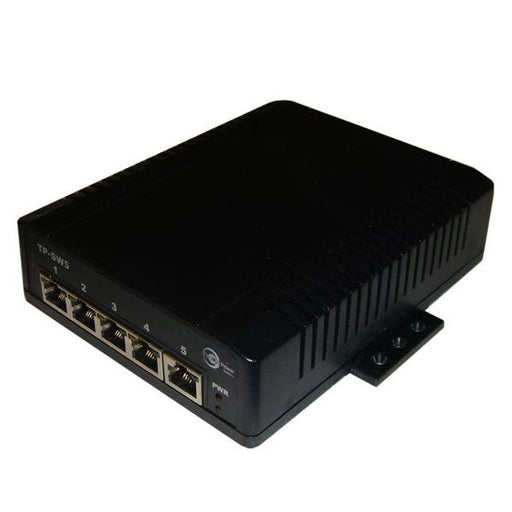

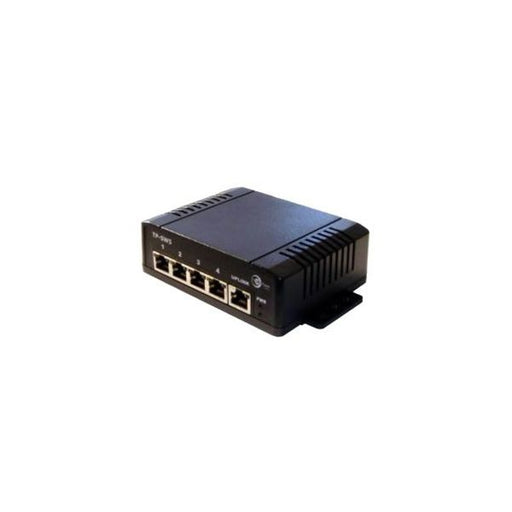

Tycon Power 5 Port High Power POE Gigabit Switch.
TP-SW5G-D
by TYCON Systems
Sold out
Original price
$0
Original price
$259.00
-
Original price
$259.00
Original price
Current price
$259.00
$259.00
-
$259.00
Current price
$259.00
This product does not include a power supply. You must purchase one separately
Product Features
• High Power 10/100 and 1000Mb (“G”) POE Switch
• Remotely Power Equipment thru CAT5 Cable up to 100m
• Up to 2A per Port
• Built-in Surge Protection
• Automatic MDI/MDI-X Crossover
• Automatic Speed and Duplex Sensing
• 1K Self Learning MAC Address Table
• Compact Size
• High Temperature Operation
• CE and FCC Certification
The TP-SW5G-D Power Over Ethernet (PoE) 10/100/1000Mb switch offered by Tycon Power Systems is a fully automatic high speed 5 port Ethernet switch with up to 35 Watts of PoE power per port. It complies with the IEEE802.3af/at specifications for valid PoE device detection.
The unit supplies power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device.
The switch accepts DC power from a user supplied 46V-57V DC power source. There are 2 power inputs for attachment of primary and backup power sources.
The switch also accepts PoE power via the 802.3af/at uplink port.
Product Specifications
• Ethernet Standard: IEEE802.3/IEEE802.3u
• Ports: 1 data/POE input and 4 data/POE, automatic crossover and polarity
• Transmission Speed: 1000Mbps / 100 Mbps /10 Mbps Auto-negotiation
• Switch Technology: Store and Forward
• Protocol: CSMA/CD
• Flow Control: IEEE802.3x(full-duplex), Back Pressure(half-duplex)
• Data Transmission Rate: 1488000pps for 1000baseT, 148800pps for 100baseT, 14880pps for 10baseT
• Address Table: 1K MAC, self-learning
• Connections: Shielded RJ45
• POE Output Ports: Port 1-4, auto power management Pin assignment: TX(1,2), RX(3,6), V+(4,5), V-(7,8)
• Maximum POE Power: 35W per port
• POE Auto Detection: IEEE 802.3af, 802.3at
• POE Protection: Over Temperature, Over Current, Over/Under Voltage
• Data Surge Protection: IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact), IEC61000-4-4 (EFT) 40A (5/50ns) , IEC61000-4-5 (Lightning) 20A (8/20μs
• DC Power Input: 48VDC (42V to 60V), Dual DC Inputs, Reverse Polarity Protected. Also Accepts POE power input on Port 5
Product Applications
• Wireless Access Points and Client Devices
• IP Phone and Security Camera Systems
• Power multiple devices from 1 data cable
Technical Data Sheets:
TP-SW5G-D Data Sheet
