Tycon Solar 10W 12V Solar Panel w/ 2.5W Continuous Power
TPS-12-10W
by TYCON Systems
Sold out
Original price
$43.00
Original price
$43.00
-
Original price
$43.00
Original price
$43.00
Current price
$43.00
$43.00
-
$43.00
Current price
$43.00

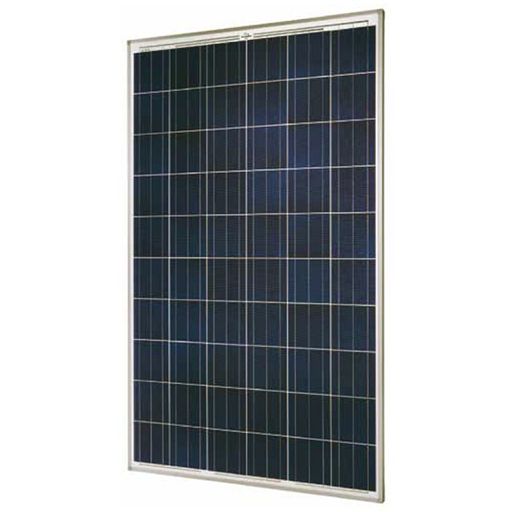

Tycon Solar TPS-12-10W is a 10W 12V solar panel designed to power sensors, basestations, cameras, lighting, and more. It supplies up to 2.5W of continuous power.
The TPS-12-10W solar panel is a high efficient panel with excellent low light performance. The multicrystalline silicon solar cells are laminated with a TPT (Tedlar/Polyester/Tedlar) and EVA (Ethylene Vinyl Acetate) bi-layer for high reliability and long life. The cell array is sealed in a heavy duty extruded aluminum frame with a high transparency low iron tempered glass cover to protect from harsh environments; hail, wind, snow, and ice. They are easy to mount thanks to the aluminum frame design.
Product Features
• Up to +5WP Positive Power Output Tolerance
• Excellent Low Light Performance
• Extremely Reliable. 5 Year Warranty. 25 Year Solar Cell Output Warranty
• High Efficiency with High Transparency Low Iron Tempered Glass Cover. Rugged Extruded Anodized Aluminum Frame
• Sealed for Protection from Harsh Environments
• Enclosed Junction Box for Wired Connections
Product Applications
• Battery Charging Applications
• Surveillance Cameras
• Wireless Base Stations
• Outdoor Lighting
• Remote Sensors
• Backup Power Systems
Product Specifications
• Maximum Power (±5%): 10W
• Voltage at Pmax (Vmp): 17.85V
• Current at Pmax (Imp): 0.62A
• Open Circuit Voltage (VoC): 21.95V
• Short Circuit Current (lsc): 0.69A
• Short Circuit I Temp Coeff: 0.058% / °C
• Open Circuit V Temp Coeff: -0.31% / °C
• Output Power Temp Coeff: -0.41% / °C
• Wind Surivability: 201kph (125mph)
• Hailstone Survivability: 1"@50mph
• Operating Temperature: -40 to 85°C
• Continuous Power Capability (6hrs average sunlight per day): 2.5W
• Size: 354 x 318 x 18mm (13.9 x 12.5 x 0.71")
• Weight: 1.4kg (3.1lbs)
• Warranty 5 Year Product / 25 Year Output
Product Documentation
TPS-12-10W Datasheet
