Tycon Solar Kit Power Vent System for RPST enclosures 12 or 24V 50C Auto Thermal Control

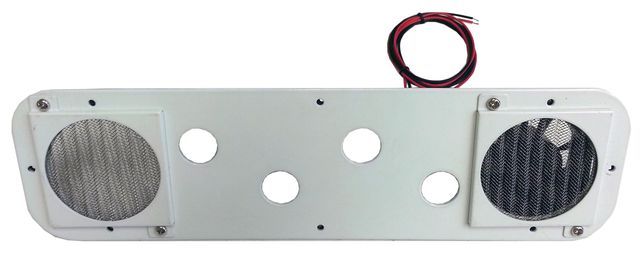

The RPST-PowerVent is a field upgradeable power ventilation system for Tycon ENC-ST enclosures which are used in RPST Remote Power and UPS-ST Outdoor Backup Power systems. The RPST-PowerVent unit replaces the existing access plate located in the bottom of the enclosure. Product Features • 12V Power Ventilation Adapter for Tycon ST Enclosures • Field Upgradeable • Thermostatically Controlled • Only 1W Power Draw at 12VDC Product Specifications • Voltage Requirements: 12VDC to 24VDC • Power Requirements: 1W @ 12VDC - when temperature over 50C (122F) • Power Connection: 1 meter 22AWG 2 Conductor red/black wire • Fan Air Volume: 14 CFM min • Filter Mesh x 2: Stainless Mesh - 0.050" Openings • Cable Ports: 29mm holes x 4 for Cable Gland • Mounting: 8 Existing Screws in Enclosure Bottom Plate • Operating Temperature: -30C to +65C (-22F to 149F) • Humidity (RH) 5% - 95% (non-condensing) • Dimensions (LxWxH): 330 x 91.4 x 38mm (13" x 3.6" x 1.5") • Weight: 430g (15 oz) Technical Data Sheets RPST-POWERVENT-24 Spec Sheet User Guide Tycon Power Learning Center Presentation
