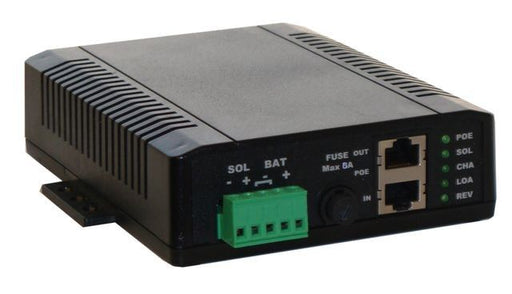

Tycon Systems 24/48V PoE/Solar 10A Dual Input 24V Battery Charge Control [TP-SCPOE-2448-HP]
TP-SCPOE-2448-HP
by TYCON Systems
Original price
$158.00
Original price
$158.00
-
Original price
$158.00
Original price
$158.00
Current price
$158.00
$158.00
-
$158.00
Current price
$158.00
The solar input can handle up to 8A. The POE input up to 2.6A. They have a built in POE inserter that delivers 48V 0.625A at the POE out port. They also have a secondary wire terminal 24V 1.5A output. They have full electronic protections for short circuit, reverse current, overvoltage, overcharge and over discharge.
The built-in overdischarge protection and low self consumption ensures the battery is not overdischarged, which greatly increases the life of the batteries.
They have five LED indicators to give a quick visual status if current is being supplied by a POE source or solar panel, if battery is charging, If load output is turned on and a warning if battery is connected with reverse polarity.
Solar and Battery Connections are via 4 wire terminals for wire size up to 10AWG. POE Input and Output is via 2 RJ45 shielded connectors.
The controllers are externally fused with a standard replaceable fuse.
Size: 159 x 118 x 40mm (6.3 x 4.6 x 1.6”)
Weight: 312 g (11 oz )
Tycon Power Systems POE/Solar charge controllers have dual inputs to charge batteries from a POE source and also a secondary source like solar panels in order to provide redundancy and insure 100% uptime for critical applications.
TP-SCPOE-2448-HP Data Sheet
Tycon Systems Learning Center Presentation
