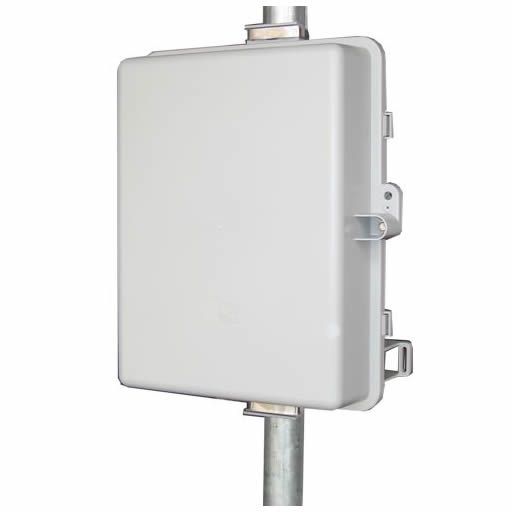

Tycon Systems UPSPro 100W 600VA 120/240VAC 12V 50Ah Solar Ready Outdoor UPS System [UPS12-50-120]
UPS12-50-120
by TYCON Systems
Original price
$1,118.00
Original price
$1,118.00
-
Original price
$1,118.00
Original price
$1,118.00
Current price
$1,118.00
$1,118.00
-
$1,118.00
Current price
$1,118.00
The Tycon Solar UPSPro 100W 600VA series outdoor enclosure is designed for applications that require a backup power source in order to maintain uninterrupted service to customers. The enclosure is powered from 120/240VAC. It is also solar ready so a solar panel can be added as an alternate power source or to extend backup time. Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid AGM batteries. Enclosures have multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.
Product Features
• Weatherproof, UV resistant, outdoor enclosures
• Powered from AC mains power and/or Solar
• Interior space for customer electronics
• Wall or Pole Mounting
• Isolates Customer Equipment from Power Line Surges
• High Quality AGM Sealed Lead Acid Batteries
• Advanced battery charge controller protects against overcharge and over discharge
Product Specifications
• Battery Voltage (DC): 12VDC
• Input Voltage (AC): 120/240VAC, 50/60Hz, 5A Max
• Capacities (Amp Hr): 50Ah
• Available Storage Capacity (Watt Hr): 600Wh
• Max. Output Power: 120W
• Suggested Maximum Load: 100W
• Maximum Instantaneous Load: 20A 500msec
• Battery Type: Maintenance-free, Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM)
• Battery Life: 5+ Years
• Battery Cable Fuse: 6x32mm 30A 250V Ceramic Fuse
• Controller Type: 20A PWM Solar Controller with Status Display and Load on/off switch Max Solar Panel Size 160W
• Controller Display Status: Battery Voltage, Charging Voltage, Charging Current, Load Current, Temperature
• Bulk Charge: 14.4V
• Float Charge: 13.8V
• Over-Discharge Protection: 11V
• Over-Discharge Recovery Voltage: 12.6V
• Controller Self Consumption: <0.3W
• Enclosure Type: Pole/Wall Mount Powder Coat Aluminum
• Enclosure Size: 12 x 14 x 15" (305 x 356 x 381mm)
• Operating Temperature: -40°C to +65°C (-40°F to 149°F)
• System Weight (without batteries): 20lb (9kg)
• Battery Weight (each): 40 (18kg)
• Certifications: Individual components used have CE Certifications. Batteries have CE and UL.
• Warranty: 3 Years
Product Includes
(1) Polycarbonate Enclosure
(1) Battery
(1) Charger
(1) Controller
Product Documentation
UPS12-50-120 Data Sheet
