Tycon Wireless Kit EZ-Bridge-Ultra5 100Mbps Point to Point Bridge System - Plug and Play 5GHz 802.11a/n 250m
EZBR-Ultra5 is a high capacity 100Mbps and high power 250mW outdoor wireless bridge system operating within the 5GHz unlicensed spectrum. The complete system allows for ultra high bandwidth connections between two buildings up to 4 miles or more apart with good line of sight. It creates a transparent bridge between two sides and passes all network traffic, including VPN and DHCP.
Product Features
• High Power Electronics and Powerful Advanced MiMO Antenna
• True Plug and Play
• 64 and 128bit WEP, WPA and WPA2 Encryption
• Web-Based Configuration
• PoE (Power over Ethernet)
• Transparent Bridge
Product Specifications
• Data Rates: 6 to 150 Mbps
• Operating Distance: Up to 12 miles line of sight
• Standards: IEEE802.11n, 802.11a, 802.3, 802.3u
• Power Requirements:
-Power Supply: 100-240VAC 50/60Hz
-EZ-Bridge Ultra2-LR: 12VDC to 24VDC
-Av. Power Consumption: 5.5W
• Regulation Certifications: FCC Part 15 / UL
• RF Frequency Band: 5180 - 5825 MHz
• Available Transmit Power: 802.11a/n: 4 to 23dBm
• Modulation Technology: -802.11a: OFDM
-802.11n: TDMA
• Operating Channels: 5GHz 12 channels supports at 40MHz width
• Receive Sensitivity (Typical)
-802.11a/n: -94 ± 2dB @ 14Mbps
-802.11n: -75 ± 2dB @ 300 Mbps

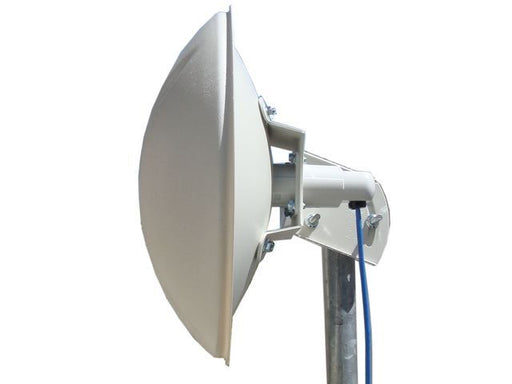

• Antenna: 5GHz 22dBi Dish Antenna, 8° AZ and 8° EL Beamwidth, >23dB front to back
• Network Topology: Ad-Hoc, Infrastructure
• Operation Modes: Point to Point Bridge, Access Point, Client Bridge or Router
• Processor: Atheros MIPS 24KC 400MHz
• Interface: 10/100Mbps RJ45 LAN Port
• Memory: 32MB SDRAM, 8MB Flash
• IP Auto Configuration: DHCP Client
• Security: MAC Address Filtering, WEP/WPA encryption, Hide SSID in beacons, Layer 2 isolation
• Management Configuration:
-Web-based Configuration (HTTP)
-Console Configuration
-SNMP Protocol
• Firmware Upgrade: Upgrade firmware via web browser
• Antenna Physical Dimensions (diameter x depth): 326 x 254mm (12.84 x 10")
• Complete System Weight: 8.6kg (19lbs)
• Temperature Range:
-Operating: -30 to 75°C (-22 to 167°F)
-Storage: -40 to 80°C (-40 to 176°F)
