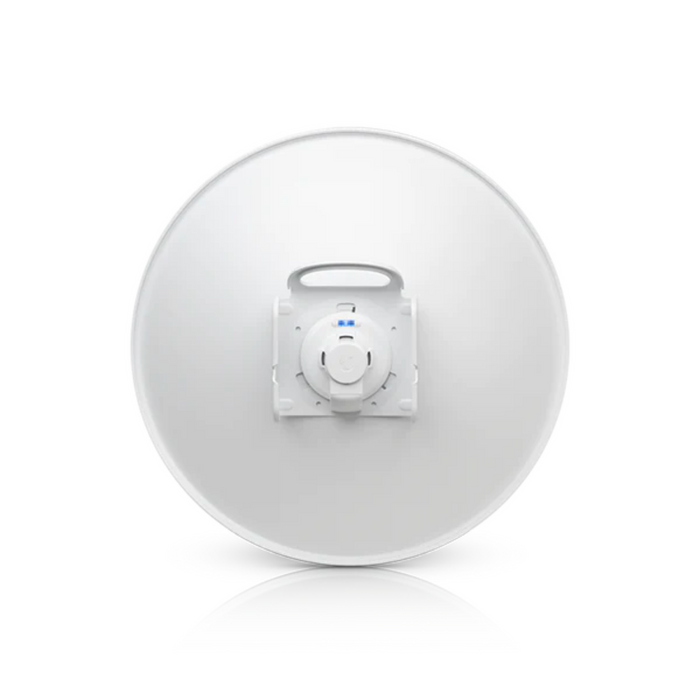

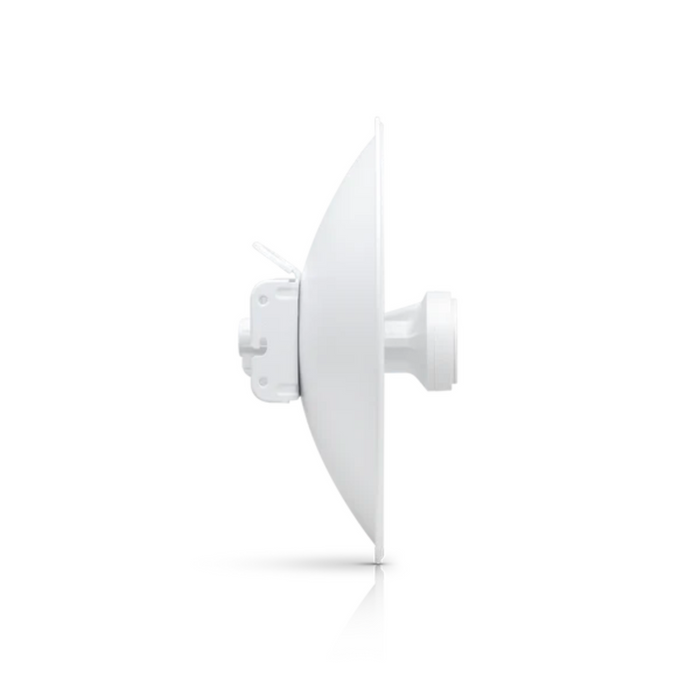

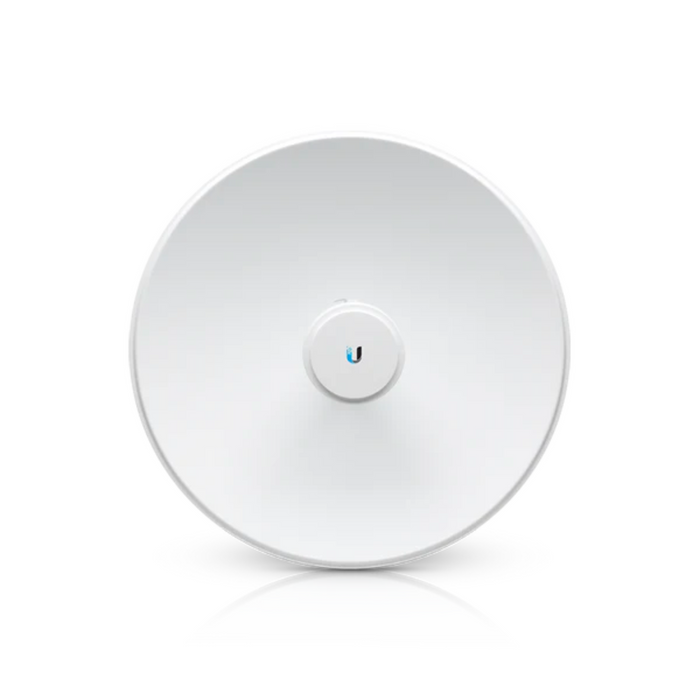

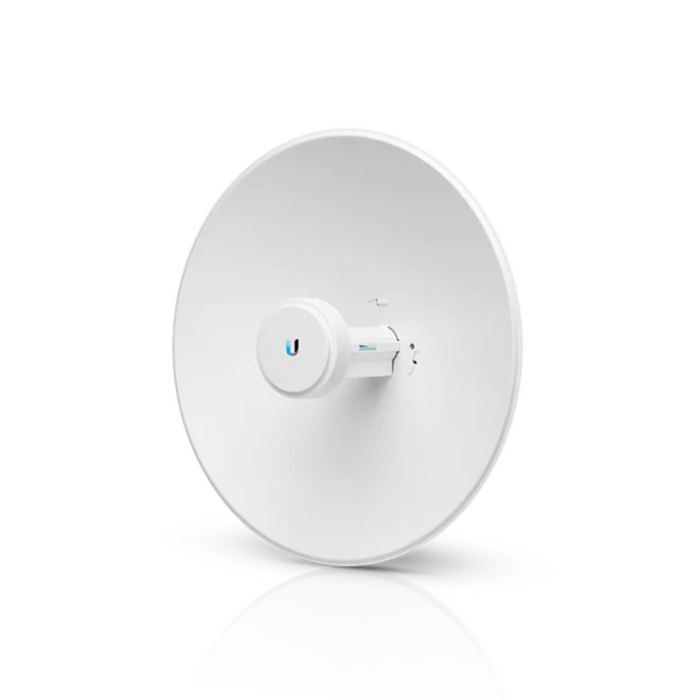

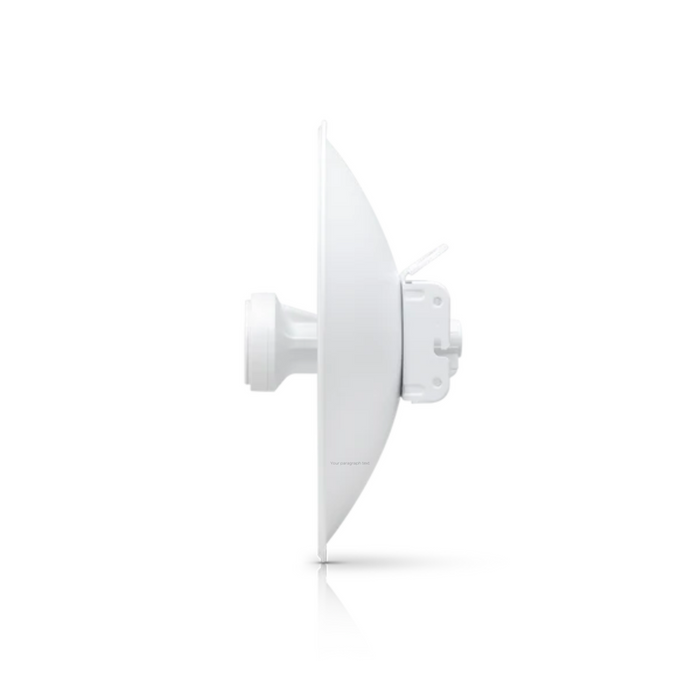

Ubiquiti airMAX PowerBeam 2AC 400 mm Bridge [PBE-2AC-400-US]

Ubiquiti PowerBeam 2AC blocks or spatially filters out noise so noise immunity is improved. The PowerBeam is equipped with a long range Point-to-Point link mode. This PowerBeam airMAX ac products support up to 330+ Mbps real TCP/IP throughput - more than double the throughput of standard airMAX products. The PowerBeam AC requires no tools for assembly; only a single wrench is required for pole-mounting.

This product is a US version, intended for use in the US and Canada. This US version contains the following frequencies 2412-2462MHz.

Product Specifications:

• Frequency: 2412-2462MHz
• Management Radio: U-NII-3: 5725-5850MHz
• Dimensions: 420 x 420 x 289mm (16.54 x 16.54 x 11.38")
• Weight (mount included): 1.795 kg (4.809 lb)
• Gain: 18 dBi
• Networking Interface: (1) 10/100/1000 Ethernet Port
• Enclosure: Outdoor UV Stabilized Plastic
• Max. Power Consumption: 7.5W
• Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
• Power Method: Passive PoE (Pairs 4,5+;7,8 Return)
• Processor Specs: MIPS 74Kc
• Memory: 64MB
• LEDs: Power, Ethernet, (4) Signal Strength
• Channel Sizes: PtP Mode 10/20/40MHz - Antenna Feed (Outdoor UV stabilized Plastic enclosure characteristic), PtMP Mode 10/20/40MHz Dish Reflector - (Powder-Coated SPCC enclosure characteristic)
• ESD/EMP Protection: Air: +/- 24 kV, Contact: +/-24kV
• RoHS Compliance: Yes
• Salt Fod Test: IEC 68-2-11 (ATSM B 117), Equivalent: MIL-STD-810 G Method 509.5
• Supported Voltage Range: 22 to 26VDC
• Wind Survivability: 200 km/h (125 mph)
• Wind Loading: 342.5 N @ 200 km/h (77 lbf @125 mph)
• Mounting: Pole Mounting Kit Included
• Operating Temperature: -40 to 70 C (-40 to 158 F)
• Operating Humidity: 5 to 95% Noncondensing
• Temperature Shock Test: IEC 68-2-14
• Vibration Test: IEC 68-2-6
• UV Test IEC 68-2-5 at 40degC (104degF), Equivalent: ETS 300 019-1-4
• Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
• Certifications: CE, FCC, IC

Product Includes:

• (1) Dish Reflector
• (1) PBE-2AC-400 Antenna Feed
• (1) Rear Housing
• (1) Dish Bracket
• (1) Pole Clamp
• (1) U-Bolt
• (1) Flange Nuts (m8, Qty. 2)
• (1) Gigabit PoE (24V, 0.5A) with mounting Bracket
• (1) Power Cord
• (1) Quick Start Guide
