Ubiquiti EdgeSwitch 48-Port PoE Switch 750W [ES-48-750W]

ES-48-750W by Ubiquiti
Sold out
Original price $1,606.00 - Original price $1,606.00
Original price $1,606.00
$1,606.00
$1,606.00 - $1,606.00
Current price $1,606.00

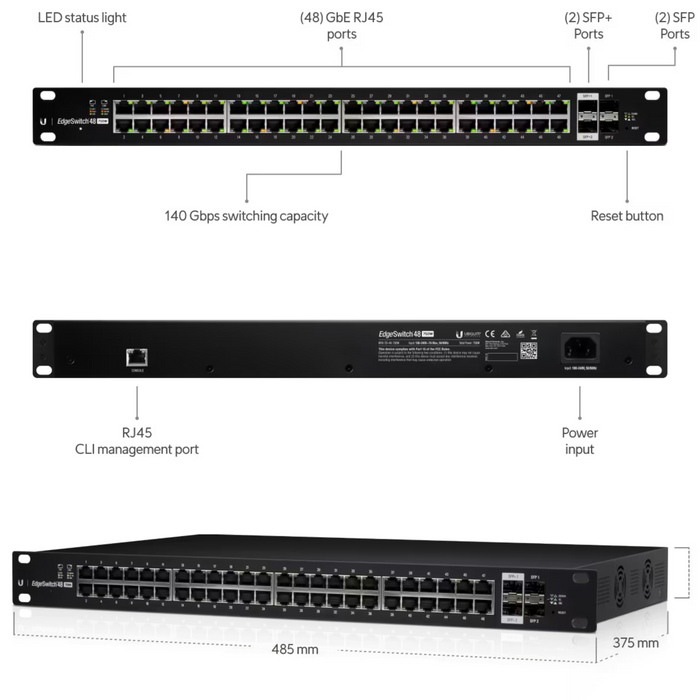

The EdgeSwitch ES-48-750W is 48-Port, Managed PoE+ Gigabit switch with 750W non-blocking throughput switching performance, Gigabit Ethernet RJ45 and SFP+SFP Ports and Auto-Sensing IEEE 802.3af/at PoE. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides layer-3 routing capabilities.

Product Features:

  • (48) Gigabit RJ45 ports
  • (2) SFP+ ports
  • (2) SFP ports
  • Total, non-blocking throughput: 70 Gbps
  • Maximum power consumption: 750W
  • Supports POE+ IEEE 802.3at/af and 24V Passive PoE
  • Rackmountable
Product Specifications:
  • Dimensions: 485 x 43.7 x 374.6mm (19.09 x 1.72 x 14.75")
  • Weight: 6.5kg (14.3lbs)
  • Total Non-Blocking Throughput: 70Gbps
  • Switching Capacity: 140Gbps
  • Forwarding Rate: 104.16Mpps
  • Max. Power Consumption: Includes PoE Output: 750W, Excludes PoE Output: 64W
  • Power Method: 100-240VAC/50-60Hz, Universal Input
  • Power Supply: AC/DC, Internal, 750W DC
  • LEDs per Port: RJ45 Data Ports: PoE, Speed/Link/Activity, SFP/SFP+ Data Ports: Speed/Link/Activity
  • Networking Interfaces: (48) 10/100/1000Mbps RJ45 Ethernet Ports + (2) 1/10Gbps SFP+ Ethernet Ports + (2) 1Gbps SFP Etherent Ports
  • Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band
  • Certifications: CE, FCC, IC
  • Rackmount: Yes, 1U High
  • ESD/EMP Protection: Air: ±24kV / Contact: ±24kV
  • Operating Temperature: -5 to 40°C (23 to 104°F)
  • Operating Humidity: 5 to 95% non-condensing
  • Shock and Vibration: ETSI300-019-1.4 Standard
  • PoE Interfaces: PoE+ IEEE 802.3af/at (Pins 1,2+;3,6-)    24VDC Passive PoE (Pins 4,5+;7,8-)
  • Max. PoE+ Wattage per Port by PSE: 34.2W
  • Voltage Range 802.3at Mode: 50-57V
  • Max. Passive PoE Wattage per Port: 17W
  • 24V Passive PoE Voltage Range: 20-27V
Product Includes:
  • (1) Ubiquiti EdgeSwitch 48-Port PoE Switch 750W
  • (1) Power Cord
  • (4) #10-32 x 5/8" Mounting Screws
  • (4) #10-32 x 5/8" Cage Nuts
  • (1) Quick Start Guide
