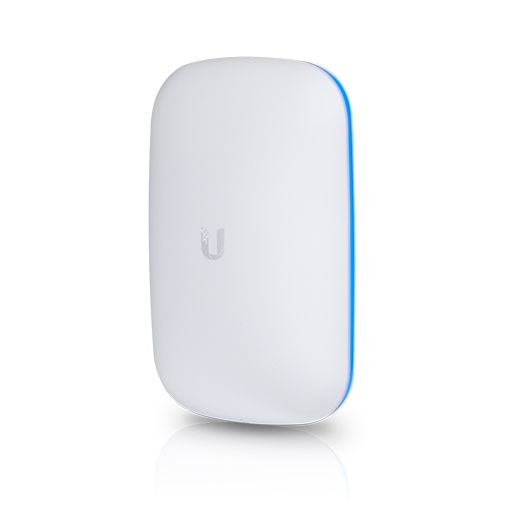

Ubiquiti UniFi Access Point BeaconHD US [UAP-BeaconHD-US]

802.11ac Wave 2 access point that plugs into an AC wall outlet to quickly extend wireless coverage and improve throughput.

The Access Point BeaconHD (UAP BeaconHD) is a 802.11ac WiFi access point that utilizes Wave 2 technology and bidirectional uplink design to connect with and relay the signals of other nearby UniFi access points to extend and enhance wireless coverage throughout your home or office. The compact UAP BeaconHD plugs into any AC wall outlet and offers a 1.733 Gbps throughput rate over its 5 GHz (4x4 MU-MIMO) band while also improving the radio rates of nearby WiFi devices. The UAP BeaconHD can be set up in minutes and fully managed with the UniFi Network web application or UniFi mobile app.

Features:

• 802.11ac Wave 2 WiFi technology
• Establishes bidirectional uplinks to nearby UniFi access points
• 5 GHz (802.11ac, 4x4 MU-MIMO) band with a 1.733 Gbps throughput rate
• Improves the radio rate of nearby WiFi devices

Note: The UAP BeaconHD plugs into an AC wall outlet.

Product Specifications:

• Dimensions: 169.7 x 112.15 x 32.2 mm (6.68 x 4.42 x 1.27")
• Weight: 260 g (9.17 oz)
• Networking Interfaces Wi-Fi
• Buttons Reset
• LED: System Status
• Processor: 880 MHz MIPS 1004KEc
• System Memory: 128 MB SDRAM
• Maximum Power Consumption: 11.5W
• Supported Voltage Range: 100 - 240VAC, 0.3A Max., 50/60 Hz
• Power Method: AC
• Power Supply: AC
• Power Save Supported
• Beam-forming: Supported
• Operating Frequency: 2.4GHz / 5GHz
• TX Power (EIRP): 2.4 GHz - 24.8 dBm, 5 GHz - 30 dBm
• Wi-Fi Standards: 802.11 a/b/g/n/ac/ac-wave2
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
• BSSID: Up to 8 per Radio
• Operating Temperature: -10 to 60° C (14 to 140° F)
• Operating Humidity: 5 to 95% Non-condensing
• Certifications: CE, FCC, IC

Antenna Gain of 4 Single Polarity Antennas

• (2) Dual-Band: 2.4 GHz — 4.5 dBi, 5 GHz — 5 dBi
• (2) Single-Band: 5 GHz — 5 dBi

Advanced Traffic Management

• VLAN: 802.1Q
• Advanced QoS: Per-User Rate Limiting
• Guest Traffic Isolation: Supported
• WMM: Voice, Video, Best Effort, and Background

Supported Data Rates

• 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
• 802.11ac Wave 2 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) / 58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160)
• 802.11b 1, 2, 5.5, 11 Mbps
• 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Product Includes:

(1) Ubiquiti UniFi BeaconHD

(1) User Guide
