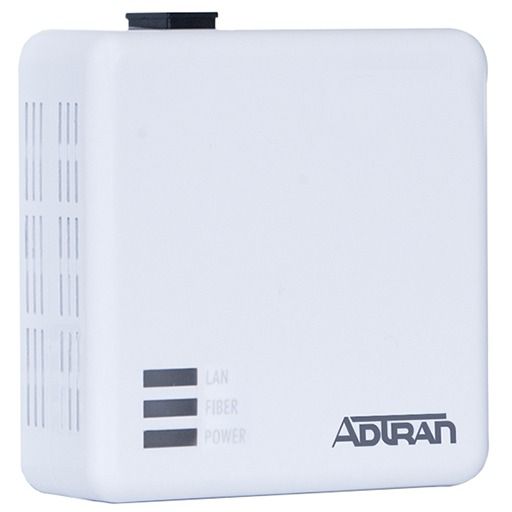

AdTran Total Access 401 Indoor 1GigE GPON Micro ONT [1287786F1S]

The Micro ONT leverages the industry-leading converged voice and data functionality widely deployed in ADTRAN integrated access, IP gateway, and Voice over IP (VoIP) platforms. Based on the ADTRAN Operating System (AOS), each ONT provides unmatched SIP and MGCP interoperability with a host of major soft switch vendors, as well as integrated statistics and tools that allow carriers to quickly and easily troubleshoot network configuration issues, and monitor performance.

• Single fiber interface with 1.244Gigabits per second upstream and 2.488Gigabits per second downstream in GPON mode
• 10/100/1000BASE-T Ethernet Interface
• AC Power Adapter

• Voltage: 12 volts typical
• Minimum Voltage: 10 Volts
• Maximum Voltage: 13.9 Volts
• Power Consumption: Typical 5 watts
• Operational Temperature: 32°F to +104°F (0°C to +40°C)
• Storage Temperature: –4°F to 122°F (–20°C to +50°C)
• TX min power: +0.5dBm
• TX max power: +5.0dBm
• RSSI max sensitivity: –27.0dBm
• RX overload: –8.0dBm
• TX wavelength: 1310nm typical
• RX wavelength: 1490nm typical

(1) AdTran 1287786F1S 401 Micro GPON 1GE ONT
