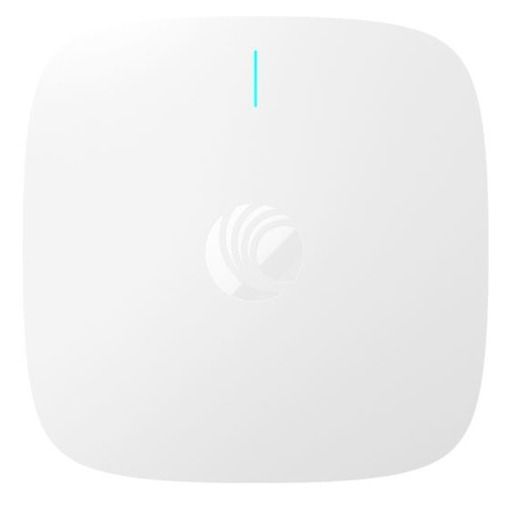

Cambium XE3-4 802.11ax Tri-Radio Indoor Wi-Fi 6/6E Access Point

Wi-Fi 6E extends the capacity of Wi-Fi into the 6GHz band, more than tripling the wireless spectrum available. With a high speed software-defined radio, the XE3-4 enables seamless transition to Wi-Fi 6E with the ability to easily change from dual-band to tri-band (2.4GHz, 5GHz, 6GHz) mode when sufficient 6GHz clients are available.

The Cambium Networks XE3-4 access point is fully backward compatible with existing Wi-Fi technology, enabling simultaneous support of new high speed clients, legacy clients, low-bitrate IoT devices, and more in a single wireless infrastructure. The Cambium Networks access point XE3-4 comes with Limited Lifetime Warranty providing return and repair service on the access point from date of purchase until end of life of the product. The Cambium XE3-4 Access Point operates with either Cambium Networks’ XMS or cnMaestro management system. Choose the management system that best fits your business and use the latest technology from Cambium Networks.

• Tri-Radio/Tri-Band W-Fi 6 and 6E
• 6.6Gbps aggregate data rate
• Software-defined 5GHz/6GHz radio
• 2.5GbE and 1GbE uplink ports
• EasyPass with Microsoft Azure and Google G Suite integration

• Radios: 5GHz/6GHz: 802.11a/n/ac/ax, 4x4 SW configurable, 5GHz: 802.11 a/n/ac Wave 2/ax, 2x2, 2.4GHz: 802.11 b/g/n/ax, 2x2 BLE 4.1
• Wi-Fi: 802.11 a/b/g/n/ac Wave 2/ax
• SSID Security: WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open
• Ports: 1 x IEEE 10/100/1000/2500 Mbps Ethernet, 1 x IEEE 10/100/1000 Mbps Ethernet, 1 x USB 2.0
• Antenna (Omni): 6GHz: 6.29dBi, 5GHz: 6.12dBi, 2.4GHz: 4.85dBi
• Max EIRP: 6GHz: 30dBm, 5GHz: 31dBm, 2.4GHz: 29dBm
• Power: 32W 802.3bt powered device 25.5W (802.3at) with USB, BT disabled Typical 22W (USB disabled).
• Security: Kensington lock slot
• LEDs: Multi-color status LEDs
• Ambient Operating Temperature: 32°F to 122°F (0°C to 50°C)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: 95% RH non-condensing
• MTBF: 668,759 hours 25ºC. 314,145 hours at 50ºC
• Mount Options: Wall or ceiling, T-bar with included locking bracket, ceiling tile plate
• Certifications: FCC, IC, CE, EN 60601-1-2, EN 60950-1, IEC 62368-1 Safety, EN 60601-1-2 Medical EMC, EN 61000-4-2/3/5 Immunity, EN 50121-1 Railway EMC, EN 50121-4 Railway EMC, IEC 61373 Railway Shock & Vibration, UL 2043 Plenum, EN 62311 Human Safety/RF Exposure, WEEE & RoHS

• Operational Modes: Controllerless Standalone Cloud managed cnMaestro or VM Cloud managed XMS
• WLAN: 1,500 clients, 16 SSIDs WPA-TKIP, WPA2 AES, WPA3 SAE, WPA3 Enterprise, 802.1x, 802.11w PMF
• Captive Portal: Hosted in XMS-Cloud or cnMaestro VM On-AP hosted guest portal Redirect to HTTP/RADIUS Server DNS logging
• Authentication Encryption: Hotspot 2.0 802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS, MAC authentication to local database or external RADIUS
• Accounting: RADIUS accounting, multiple AAA
• Scheduled WLAN: On/off by day, week, time of day
• Guest Access: EasyPass guest self-registration, guest Ambassador, ePSK or UPSK, Vouchers, Rate Limit, Splash page hosted in XMS-Cloud, cnMaestro, or on AP Client isolation per SSID, per network
• Data Limit: Client rate per SSID
• Subscriber QoS: WMM
• Fast Roaming: 802.11r, OKC, assisted roaming
• WiFi-6 Mesh: Multi-hop, either band
• Channel Selection: Multimodal channel selection with AutoChannel and AutoBand. Granular control of off-channel scan and channel selection
• RF Management: Multimodal RF optimization supporting AutoCell performed in the intelligent edge AP. Out-of-band RF spectrum analysis, radio self test network assurance, RF monitor with chn/noise/interference Data rate pruning and minimum data rates
• Network: TCP connection log, NAT logging firewall, DHCP server, L2, L3 or DNS based access control, VLAN Pooling, RADIUS attribute VID VLAN per SSID per user
• Band Steer Load Balance: Yes
• Tunnel: L2TPv2, L2GRE, PPPoE
• Network and RF Management Tools: Wired and wireles remote packet capture, ZapD performance tool, rogue AP detection
• Services: NTP, Syslog, SNMP traps, DNS proxy, auto-off on WAN failure
• API: RESTful management and statistics API Presence location APIs

• (1) US Cambium Networks XE3-4 Access Point
