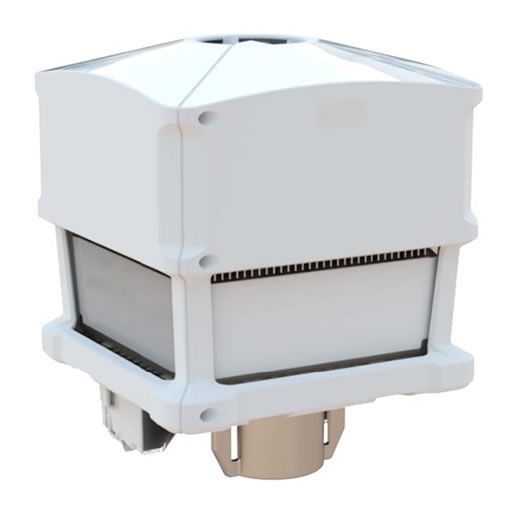

Ignitenet MetroLinq 60 GHz Terragraph Distribution Node with 3 radios [MLTG-360-3-FCC]

The IgniteNet MLTG-360-3 is a Terragraph certified distribution node (DN). MLTG-360-3 has 3 radios, supporting 270° coverage. Each radio of MLTG-360-3 equipped with a 256-element beamforming phased array antenna, supporting up to 1.8 Gbps bi-directional throughput. In addition, MLTG-360-3 supports advanced mesh solution to establish a robust wireless network. Resilient mesh can be easily constructed between multiple MLTG-360-3 to construct the wireless network with high availability.

MLTG-360-3 provides fiber-like connectivity at a lower cost than fiber which is ideal for fixed wireless access, backhaul of Wi-Fi, or cellular networks.

• Support channel 1 to channel 4 (57-66GHz)
• Up to 1.8 Gbps throughput in both direction for each radio
• Beam forming technology with phased array antenna for easy alignment
• Support TDMA-MAC for dynamic bandwidth allocation
• Support Over-the-Air (OTA) Security with AES128 encryption
• Mesh network with IPv6 routing
• Support IEEE 1588v2 timing synchronization
• Support QoS with 4 service classes
• Support VLAN tagging and QinQ
• Less than 800 microseconds latency per hop for a point-to-point link
• Self-recovery & optimization

• 60 GHz Radio
  (3) antenna tiles per radio
  64 antenna elements for each antenna tile
  90 degrees azimuth scan range: -45° to 45°
  50 degrees elevation scan range: -25° to 25°
• Interfaces
  (1) Gigabit Ethernet Port (PoE IN)
  (1) 10 Gigabit SFP+ port
  (4) Gigabit Ethernet Port (PoE OUT)
  (3) 60 GHz Radio
• Environmental Conditions
  Operating Temperature: -20°C (-4°F) to 55°C (131°F)
  IP66 Rating
• Power
  Passive PoE (Injector Optional)
  42.5V~59V DC terminal block
• Certifications: FCC/ CE

• Range:
  Up to 200m for MCS12
  > Up to 250m for MCS9
• RF Performance (TX): EIRP 44dBm for each radio
• RF Performance (RX):
  -88 dBm @ MCS9
  -78 dBm @ MCS12

(1) Mounting Hardware

If not using DC Power, the ICC-POE-90W is required.
