MikroTik LHGR LTE 4G (Antenna Only, Doesn't Include Any LTE Modem) [RBLHGR]

Suggested replacement for RBSXTR.

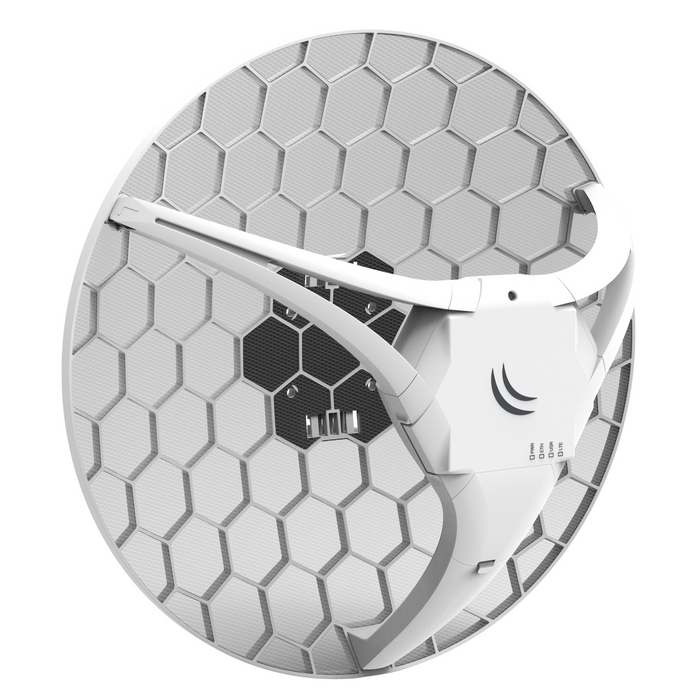

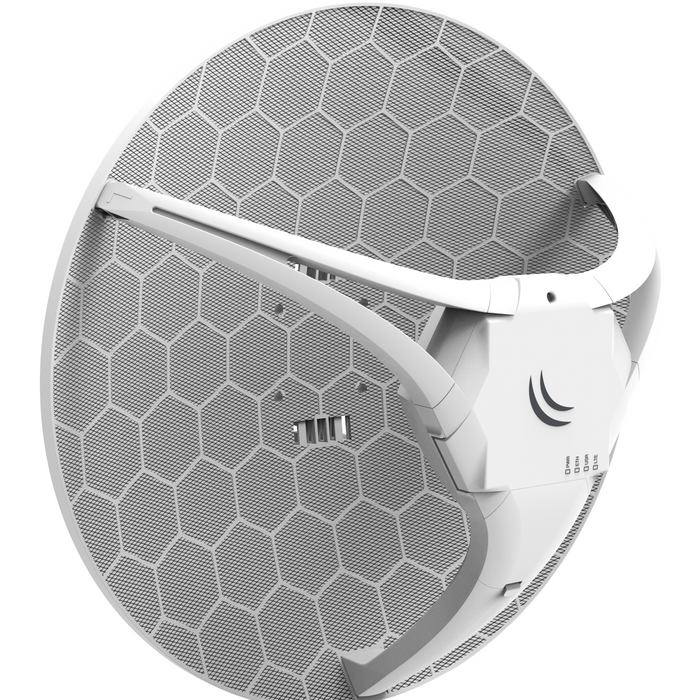

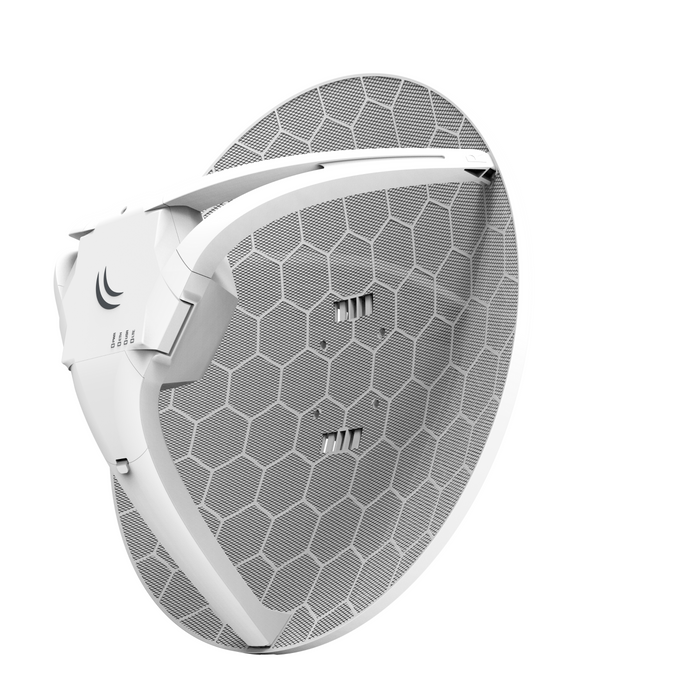

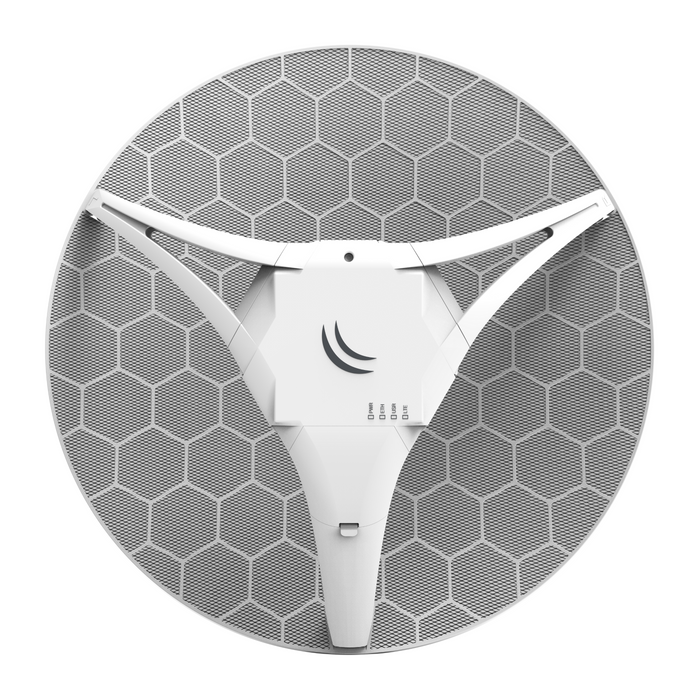

The MikroTik LHG R [RBLHGR] is an integrated high gain 21dBi LTE antenna WITHOUT LTE modem (free miniPCI-e slot). In the case, if for any reason you don't want to use one of our own LTE modems, you can simply buy the LHG R and install the modem of your choice.

Unit is designed, for remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any high enough structure, and connect even where cell phones can’t. Due to it’s large sized high gain antenna, the device is capable to connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.

*) the device has no built in LTE modem, the SIM slot can only be used, if an LTE modem is installed (not included with the product).

Product Specifications:

• Product Code: RBLHGR
• CPU: QCA9531 650 MHz
• Size of RAM: 64 MB
• Storage: 16 MB Flash
• 10/100 Ethernet ports: 1
• Antenna Gain: 21dBi
• Antenna Beam Width: 25 degrees
• LTE Category: -
• 3G Category: -
• 2G Category: -
• SIM Slot: 1 (Mini SIM)
• PoE In: Yes
• Supported Input Voltage: 12 - 57V (Passive PoE, 802.3af/at)
• Dimensions: 391 x 391 x 227 mm
• Operating Temperature: -40°C .. +60°C tested
• License Level: 3
• Operating System: RouterOS
• Max. Power Consumption: 6W

• (1) LHGR LTE 4G (w/o modem)
• (1) Power Adapter (24V 0.38A)
• (1) PoE Injector
• (2 Metal Rings
• (1) K-LHG screws
