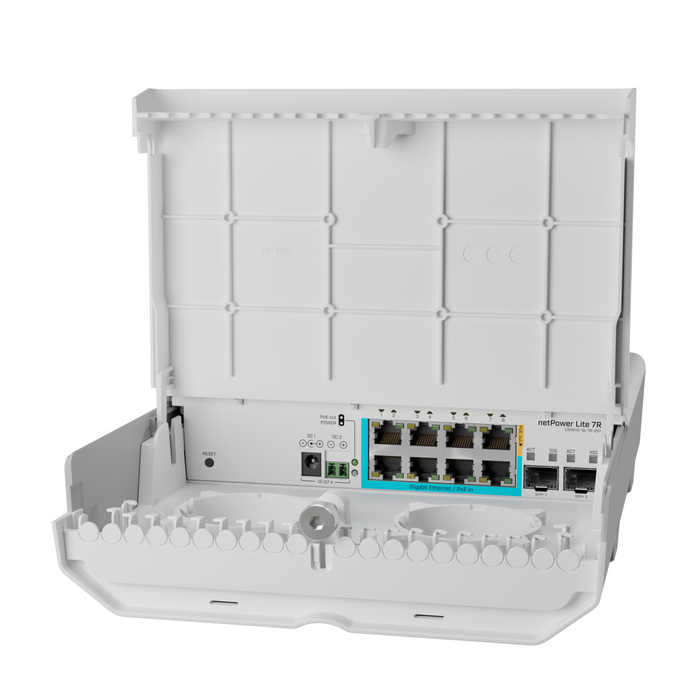

MikroTik netPower Lite 7R Outdoor Reverse PoE Switch [CSS610-1Gi-7R-2S+OUT]

With the MikroTik netPower Lite 7R switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.

With this switch you won’t have to worry about power issues, as there are many options. The MikroTik netPower Lite 7R has 7 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 8 can power other PoE capable devices with the same voltage as applied to the unit. There is also a DC jack and a 2-pin terminal for alternative powering.

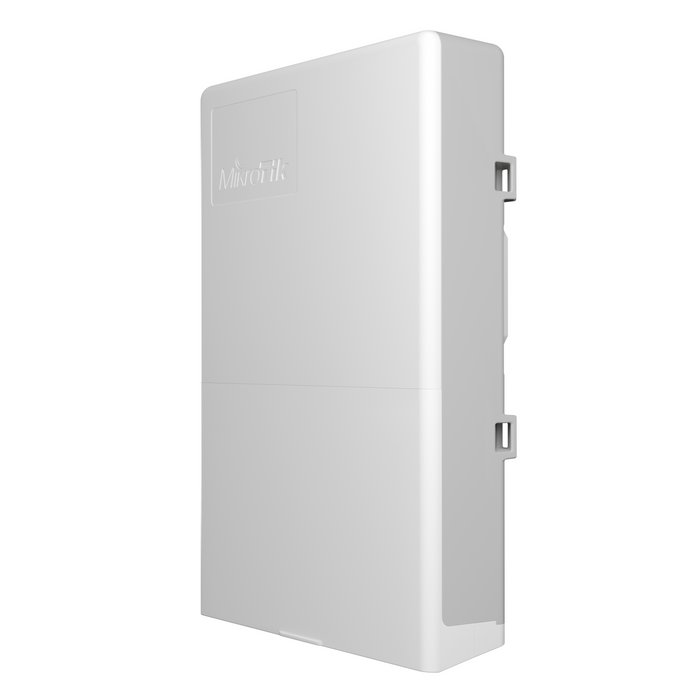

The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. The MikroTik netPower Lite 7R has a non-blocking throughput of 28 Gbps, switching capacity of 56 Gbps and forwarding rate of 41.7 Mpps.

The power supply is NOT included with the product- must be purchased separately.

Product Features:

• (7) Reverse PoE Gigabit Ethernet Ports
• Durable Weatherproof Enclosure
• DC Jack & 2-Pin Terminal for Alternative Powering
• Can be powered by a battery
• (2) 10G SFP+ Ports
• Non-blocking throughput- 28 Gbps
• Switching Capacity- 56 Gbps
• Forwarding Rate- 41.7 Mpps
• Number of 1G Ethernet Ports: 8
• Number of 10G SFP+ Ports: 2
• SwOS
• PoE-In: Passive PoE
• Poe-In Input Voltage: 12-57V
• PoE-Out Ports: Ether8
• Number of DC Inputs: (9) 7x PoE-In, 2-pin Terminal, DC Jack

• Max out per Port Output (Input < 30 V): 600 mA
• Max out per Port Output (Input > 30 V) 450 mA
• DC Jack Input Range: 12-57 V
• 2-Pin Terminal Input Voltage: 12-57 V
• Max Power Consumption without Attachments: 7 W
• Max Power Consumption: 29 W
• Operating Temperature: -40°C to +70°C tested
• Max Power Consumption: 29 W
• Certifications: FCC, IC, CE

• (1) netPower Lite 7R Outdoor Switch
• (2) Hose Clamp
• (1) K-66 Fastening Set
