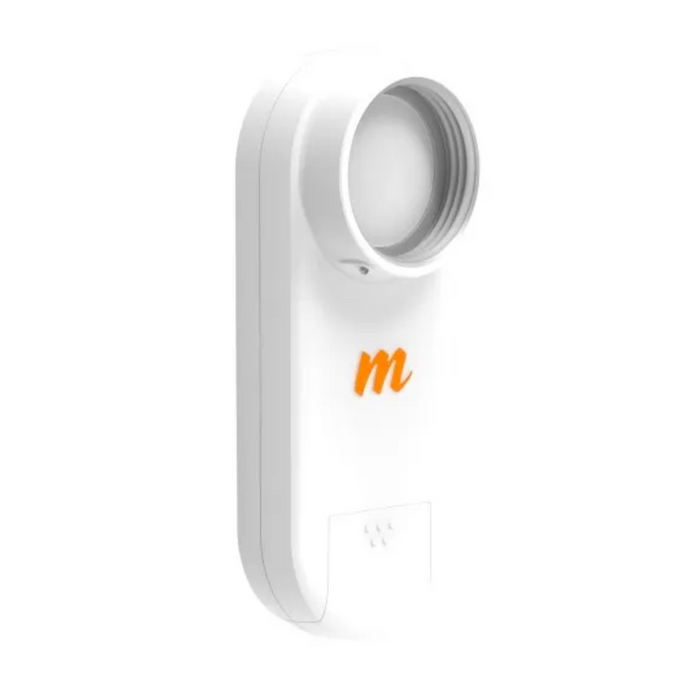

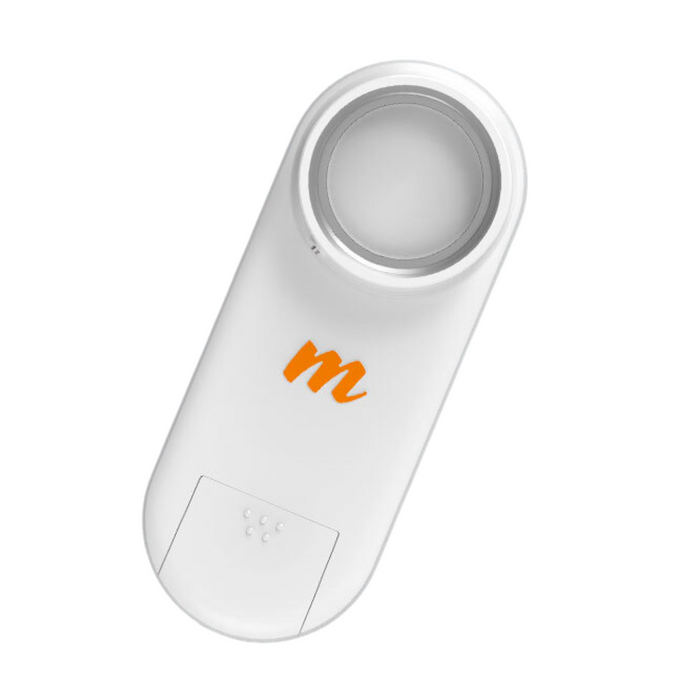

Mimosa C5x 4.9-6.4GHz Modular PTMP 500 - 700Mbps 8dBi Radio [C5x]

This product has been discontinued by Mimosa. Suggested replacement is the C6x

Modular & Flexible

The Mimosa C5x is the industry’s most versatile, integrated radio with four modular twist-on antenna options. The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and cost efficiency, the C5x is the go-to PTP or PTMP solution for 5 GHz deployments.

THE BASICS

• 700Mbps Max PTMP/PTP (IP) Throughput
• 8–25dBi Gain
• 4.9–6.4GHz Extended Frequency

Integrated Radio with Modular Antenna Options

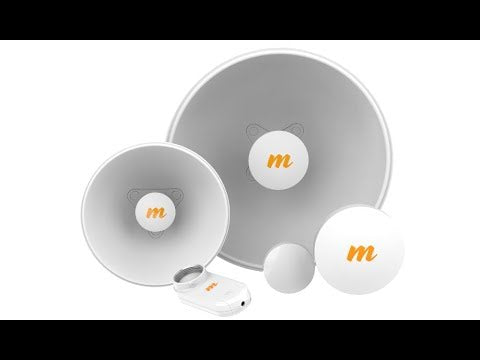

The C5x’s native 8 dBi gain can be increased to 12, 16, 20, or 25 dBi using Mimosa’s modular X-series twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.

APPLICATIONS

• Broadband Service Provider

• Public Safety Networks
• Enterprise & Campus Connectivity
• Multipoint Distribution for Security
• Smart Cities & WiFi

Reliable, Rugged, and Flexible

The C5x reduces localized noise and provides immunity from interference with breakthrough front-to-back and front-to-side performance from each of the X-series antennas. With an IP67 rating and extended 4.9–6.4 GHz frequency, you can take it almost anywhere.

Incredible RF Performance

Encased in metal and leveraging custom-designed horn and Cassegrain antennas, the C5x reduces localized noise and provides immunity from interference with breakthrough front-to-back and front-to-side performance. Each antenna in the N5-X family is optimized to isolate noise with incredible sidelobe rejection.

Extended Frequency

To escape the noise, the C5x lets you take advantage of both 4.9 GHz public safety applications and licensed frequencies up to 6.4 GHz, where allowed by local regulations. The custom-designed X-series modular antennas are specifically optimized for C5x extended frequency support.

Ultra Rugged

The C5x, with its die-cast aluminum metal enclosure, dual-pole mounts and industrial-grade, twist-on antenna options, is optimized to reduce noise, withstand the outdoor elements and stay mounted in extreme weather.

• Four Twist-On, Flexible Antenna Options

• PTP or PTMP Modes
• Extended Frequency 4.9–6.4 GHz
• Best-in-Class Noise Immunity
• Ultra Rugged IP67
• Low-Power Consumption
• Ultra Reliable

Product Specifications:

• Max Throughput: 700 Mbps (IP) PTP or PTMP
• Frequency: 4900–6400 MHz
• Weight: 0.37 kg (0.82 lbs)
• Power Consumption: 12.9 W max
• Gain: 8 dBi (native), 12–25 dBi (with antennas)
• IP Rating: IP67
• Build Material: Die-cast aluminum
• Max Output Power: 27 dBm

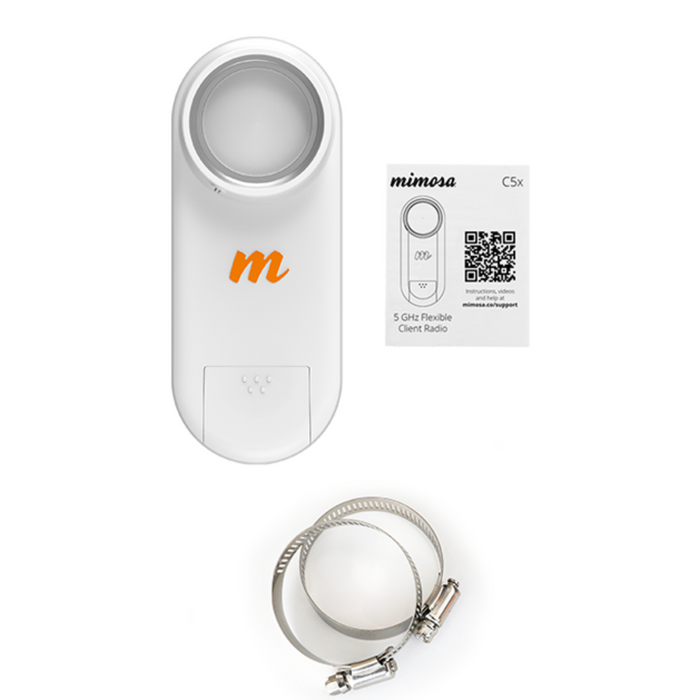

• (1) C5x Radio
• (2) Hose Clamps
• (1) Installation/User Manual
