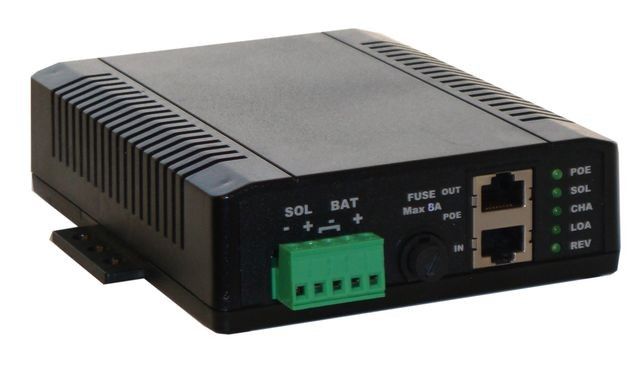

Tycon Solar POE/Solar Dual Input 24V 60W Battery Charge Control

Tycon Solar POE/Solar charge controllers have dual inputs to charge batteries from a POE source and also a secondary source like solar panels in order to provide redundancy and insure 100% uptime for critical applications. The solar input can handle up to 8A. The POE input up to 2.6A. They have a built in POE inserter that delivers 24V 1A at the POE out port. They also have a secondary wire terminal 24V 1.5A output. They have full electronic protections for short circuit, reverse current, overvoltage, overcharge and over discharge. They have five LED indicators to give a quick visual status if current is being supplied by a POE source or solar panel, if battery is charging, If load output is turned on and a warning if battery is connected with reverse polarity. Solar and Battery Connections are via 4 wire terminals for wire size up to 10AWG. POE Input and Output is via 2 RJ45 shielded connectors. The controllers are externally fused with a standard replaceable fuse. Size: 159 x 118 x 40mm (6.3 x 4.6 x 1.6”) Weight: 312 g (11 oz ) TP-SCPOE-2424 Datasheet Tycon Systems Learning Center Presentation
