Tycon Solar RemotePro 12V/24V 40W Large Steel Enclosure 12V/24V 208Ah Battery 170W Solar Panel 12/24VDC 20A Ouput Voltage Continuous Remote Solar Power System with MPPT Controller

Shipping charges may not calculate correctly when you place this product in your shopping cart. Due to its size, this product ships on freight. Please call us at 630-929-3610 for a shipping quote.

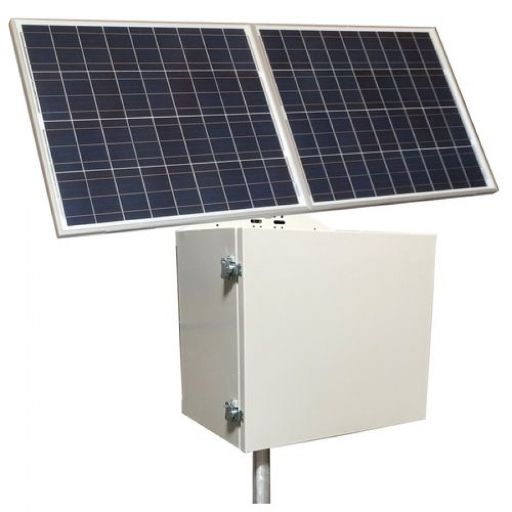

The Tycon Solar RPSTL12/24M RemotePro MPPT RPSTL12/24M-200-170 outdoor power system is designed for applications that require a primary off-grid power source to run various equipment. The vented weatherproof enclosure has generous space available inside for mounting customer equipment. Multiple mounting brackets are welded inside the enclosure for mounting DIN rails or flat plates.

The system can be configured as 12VDC or 24VDC for greater compatibility. The manageable MPPT solar controller improves system efficiency by about 15% meaning that more solar energy reaches the batteries. It supports up to 20A load control.

The enclosures are hinged, and gasket sealed with tamper resistant locks for security. It has four cable gland ports for CAT5/6 cable, antenna cables/connectors and other cabling. Included is a thermostatically controlled fan assembly which turns on automatically when the temperature exceeds 40°C. The high-quality solar panels have a 25year power output guarantee and a +5W output tolerance. The enclosures and solar mount can be mounted to a wall or pole (2-4”) with the included mounting systems.

Batteries are a Non-Spillable Valve Regulated Sealed Lead Acid Advance Glass Matt (AGM) type which have excellent temperature and deep discharge performance. Expected battery life exceeds 5 years.

The system comes with all cabling required to connect the batteries to the controller and 20’ outdoor rated cable to connect the solar panels to the controller.

• Wireless Base Stations
• Surveillance Cameras
• Wireless Bridge and Repeaters
• Off Grid Power
• Remote Lighting
• Backup Power Systems

• Complete 170W Remote Power Solution for Off-Grid Operation
• Weatherproof Outdoor Enclosures with up to 400Ah Battery
• Enclosures can be Wall or Pole Mounted (pole not included)
• High Performance Sealed Lead Acid AGM Batteries
• MPPT Solar Charge Controllers, some with PoE output
• Thermostatically Controlled Ventilation

• Battery Type: Maintenance Free Non-Spillable Valve Regulated Sealed Lead Acid AGM
• Battery Life: 5+ years
• Enclosure Type: ENC-STL-24x24x16 Pole/Wall Mount, Powder Coat Steel
• Enclosure Size: 23.9 x 23.9 x 16.1" (608 x 608 x 409.5mm)
• Internal Mount Features: DIN Rail/Flat Plate Mounting Brackets Welded to Door and Back
• Solar Panel Dims (L x W x T): 170W Solar Array 62” x 27” x 1.4” (1575 x 678 x 35mm)
• Operating Temperature: -30°C to +60°C (-22°F to 140°F)
• System Weight (no batteries): 109lb (49 kg)
• Battery Weight: 40.3lb (18.3 kg) (Each 208Ah Battery)
• Wind Speed Rating: 90MPH
• Warranty: 3 Years

(1) Steel Enclosure

(1) Solar Mount

(8) Batteries

(1) Solar Controller
