Tycon Solar UPSPro 450W 1200VA Large Aluminum Enclosure 12V/ 24V 100Ah Battery 600W Solar Ready Outdoor UPS System

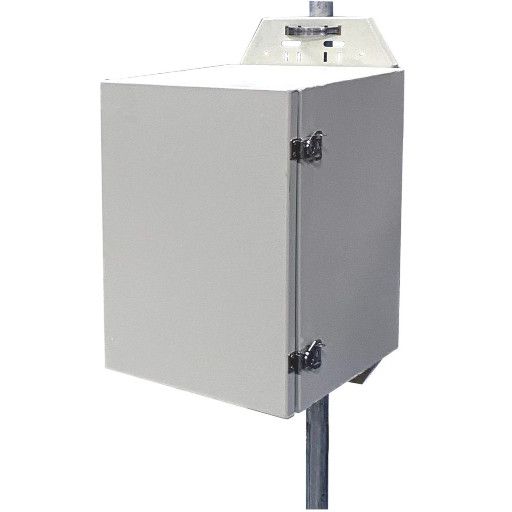

The UPSPro UPL12/24-100-600 outdoor backup power system is designed for applications that require a flexible backup power source in order to maintain uninterrupted service to customers. The enclosure is powered from 120/240VAC. It is also solar ready (requires blocking diode with most panels) so a solar panel can be added as an alternate power source or to extend backup time. Features include 12VDC/24VDC configurable output, an advanced 60A MPPT battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid AGM batteries. The pole/wall mount aluminum enclosure has multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They have thermostatically controlled power ventilation which turns on automatically when inside temperature exceeds 45C. There is generous space inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. There are mounting struts incorporated inside the enclosure to be able to mount DIN Rails or a flat metal or plywood plate. Equipment runs on battery power which isolates it from power line surges which is a main cause of outdoor equipment failure. Applications • Wireless Base Stations and Clients • Mission Critical Power • Remote Sensors • Wireless Bridge and Repeaters • Surveillance Cameras • Backup Power Systems Product Features • Configurable as 12V or 24VDC System • Weatherproof, UV resistant, Aluminum Outdoor Enclosure • Powered from AC Mains Power and/or Solar • Interior Space for Customer Electronics • Pole/Wall Mounting • Isolates Connected Equipment from Power Line Surges • High Quality Maintenance Free AGM Batteries • Advanced Battery Charge Controller Protects Against Overcharge and Over Discharge Product Specifications • Battery Voltage (DC): 12V / 24V • Load Output Voltage (DC): 11-15VDC / 22-29VDC • Suggested Max Load: 300W / 500W • AC Input Voltage: 120/240VAC 50/60Hz 6A Max • Capacities (Amp Hr): 100Ah • Available Storage Capacity (Watt Hr): 1200Wh • Battery Charge Voltage: 14.4V / 28.8V • Battery Charge Current: 50A / 25A • Battery Charge Capacity: 600W • Battery Type: Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM) • Battery Life: 5+ Years • Controller Type: 60A MPPT with status display and 30A load control • Overcharge Protection: 14.4V / 28.6V • Over-discharge protection: 11V / 22V • Over-discharge recovery voltage: 12.5V / 25V • Controller Self Consumption: <1W • Enclosure Type: Powder Coated Aluminum • Enclosure Size: 12 x 14 x 15" (305 x 356 x 381mm) • Operating Temperature: -40°C to +65°C (-40°F to 149°F) • System Weight (without batteries): 20lbs (9kg) • Battery Weight (each) 40lbs (18kg) Product Includes (1) Aluminum Enclosure (2) Batteries (1) Charger (1) Controller Product Documentation UPL12/24-100-600 Data Sheet
