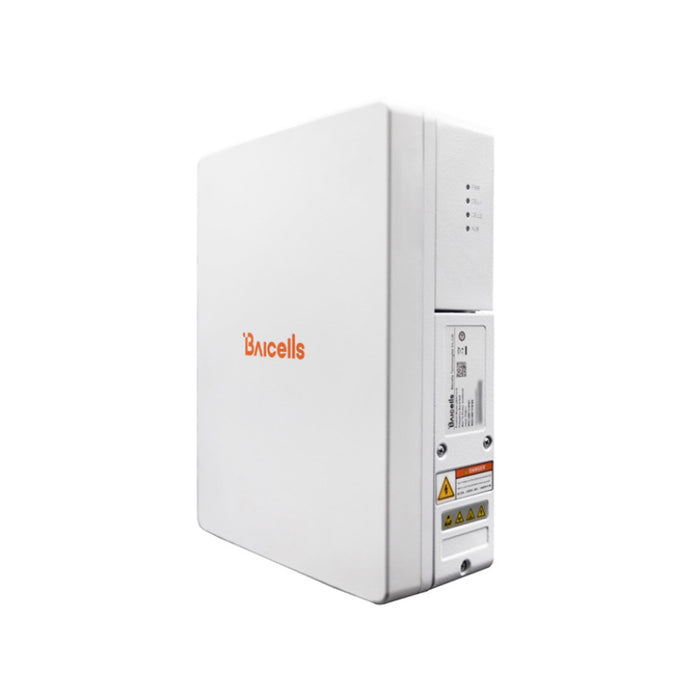

Baicells Nova 430H Outdoor TDD eNodeB [Nova430H]

The Nova 430H is pre-loaded with FreedomFi approved software, ready to plug-and-play with a FreedomFi or Powered by FreedomFi Helium 5G hotspot.

The Baicells Nova 430H is the sweet spot between high power and installation complexity. The integrated antenna, all-in-one form factor, and power output of up to 40 dBm/10 MHz make the Nova430H an excellent option for easy outdoor Helium coverage.

The Nova 430H supports two Carrier Aggregation (CA mode); contiguous or non-contiguous channels are aggregated to provide up to 40 MHz bandwidth. This doubles the downlink capacity when CA mode is used with all CAT6 or higher user equipment.

Dual Carrier mode is not supported on the Nova430H.

This product has a standard one-year warranty; an extended warranty is available.

Features:

• Compact, all-in-one design of internal antenna and GPS
• Excellent Non-Line-of-Sight (NLOS) coverage
• Peak rate: Up to DL 290 Mbps and UL 68 Mbps with 2x20 MHz bandwidth
• 2CC DL/UL CA improves the spectrum efficiency of fragmented spectrum resources
• 96 RRC connected users upgradeable to higher capacity in future releases
• Integrated small cell form factor for quick and easy installation
• Configured out-of-the-box to work with FreedomFi and Powered-By-FreedomFi 5G Hotspots
• Supports Citizens Broadband Radio Service (CBRS)
• Plug-and-play with Self-Organizing Network (SON) capabilities
• Interoperable with FreedomFi Decentralized Wireless Core technology
• Lower power consumption, which reduces OPEX, can be powered easily by Baicells compact outdoor SmartUPS
