BEC Technologies RidgeWave® LTE-A Pro CBRS Outdoor Router [6900R21] **OPEN BOX**

This is an OPEN BOX item, SOLD AS IS.

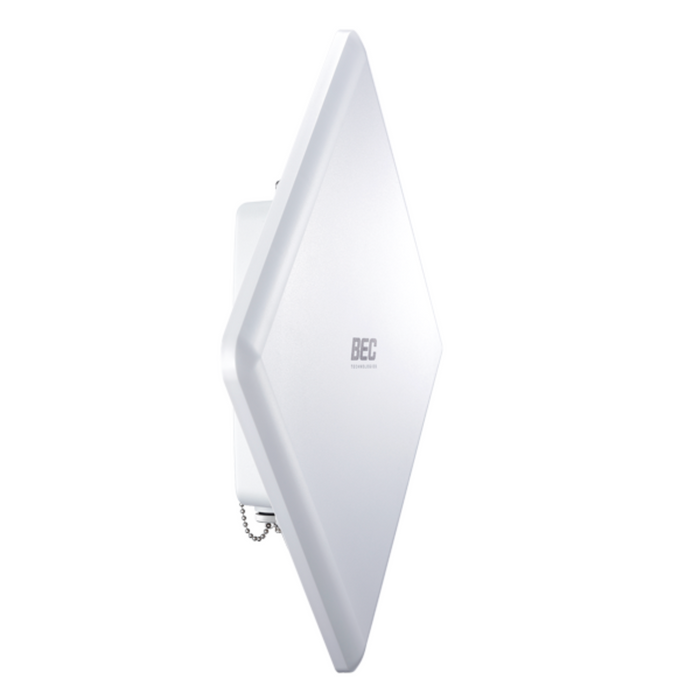

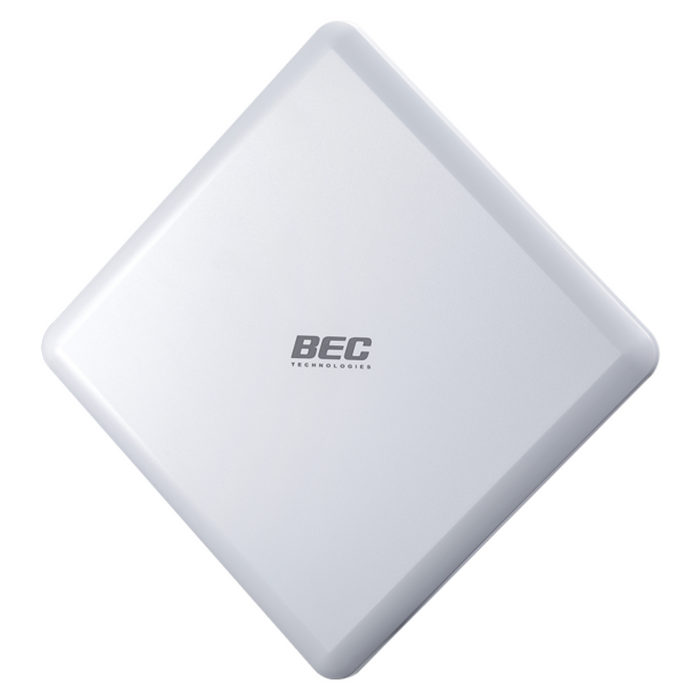

The RidgeWave BEC 6900R21 is a High-Power LTE CPE-CBSD with fully ruggedized UE delivering robust connectivity. It is ideal for Part 90 device replacements and LTE B48 CBRS commercial deployments. The 6900R21 is an LTE CAT 12 UE supporting carrier aggregation up to 3 CA DL / 2CA uplink, integrates a high gain 15dBi 4X4 MIMO directional antenna, and CAT B LTE CPE-CBSD power up to 38 dBm. CBRS deployments with the 6900R21 will experience increased capacity, higher throughput, and extended coverage.

Unique to BEC devices are GORE Vents for pressure equalization, humidity, and airflow, this accompanied with lighting/ESD Protection and the IP68/UL 50E enclosure ensure protection against dirt, harmful ingress of water, humidity and extreme temperatures for years of dependable operation.The RidgeWave BEC 6900R21 integrates seamlessly with BECentral, BEC’s proven cloud-based remote management as a complete solution for managing large-scale UE deployments. Administrators can remotely provision, monitor, upgrade, and troubleshoot devices from a single centralized location in real-time. For CAF II or other ETC support recipients, BECentral fully supports scheduling, testing, report generation, and submission for FCC Performance Measures.

Great for use in fixed wireless broadband, Last Mile Access, Mission Control, industrial, oil, gas, mining, and marine purposes.

Product Features:

• Category 12 UE with LTE TDD downlink rates up to 430Mbps (DL)
• BEC Dual-Pol Dual-Slant Adaptive Antenna Technology
• Flexible Network Modes Supporting Bridge, Router and Advanced networking
• Gigabit LAN Interface with IEEE 802.3 at complaint PoE P.D
• Extended temperature range between -40°C to 60°C
• IP68 / UL 50E SurTec Treated Die-Cast Alloy Enclosure for harsh weather conditions
• Lightweight, Compact, and unobtrusive design
• Precise alignment achievable with multi-angle, multi-position mounting brackets
• Power over Ethernet (PoE) for flexible location installation and power
• BECentral BEC’s Cloud-Based device management for extending network visibility and control of devices remotely
• Physical Interface
• Gigabit LAN Interface with IEEE 802.3at compliant PoE P.D. (Powered Device).
• SIM slot (for the SIM from Telco/ ISP)
• LED Indicators: Power, LAN (PoE), LTE, and Internet

Product Specifications:

• Supported Frequency Bands
• CAT 12 • LTE Bands: 42, 43 and 48
• Comply 3GPP Rel.12 with Carrier Aggregation
• Downlink speeds up to 430Mbps
• Uplink speeds up to 20Mbps
• Operational Modes: Bridged or Routed
• Network Protocols and Features
• NAT, static routing and RIP-1/2
• NAT supports PAT and multimedia applications
• Virtual Server and DMZ
• SNTP, DNS relay and DDNS
• IGMP snooping and IGMP proxy
• Quality of Service (QoS) Control
• Supports the DiffServ approach
• Traffic prioritization based on protocol, port number, and IP address (IPv4/ IPv6)
• Power Input: PoE P.D. (802.3at PD compliant (25.5W))
• Operating Temperature: -40°C to 60°C (-40°F to 140°F)

• Firewall:
  • Built-in NAT Firewall
  • Stateful Packet Inspection (SPI)
  • Prevents DoS attacks including Land Attack, Ping of Death, etc.
  • Access Control
  • IP Filtering, MAC Filtering, URL Filtering
  • Password protection for system management
  • VPN pass-through

• Management:
  • Quick Installation Guide
  • Web-based GUI for remote and local management
  • Firmware upgrade and configuration data upload & download via web-based GUI
  • DHCP server/ client/ relay
  • TR-069 supports remote management
  • BECentral Cloud Management
  • SNMP v1 / v2 / v3, MIB-1, MIB-11, and Syslog monitoring

Product Includes:

• (1) 6900R21 Outdoor Router
• (1) Gigabit PoE Injector
• (1) Mounting Kit
