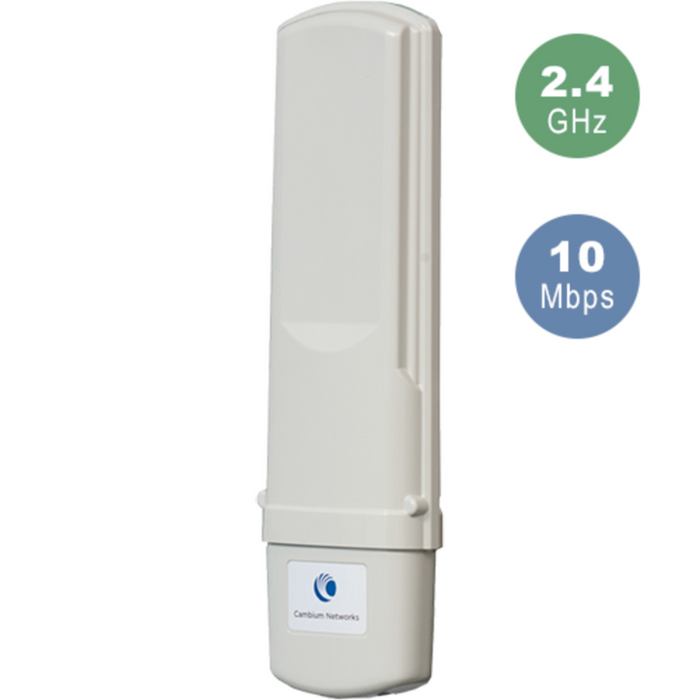

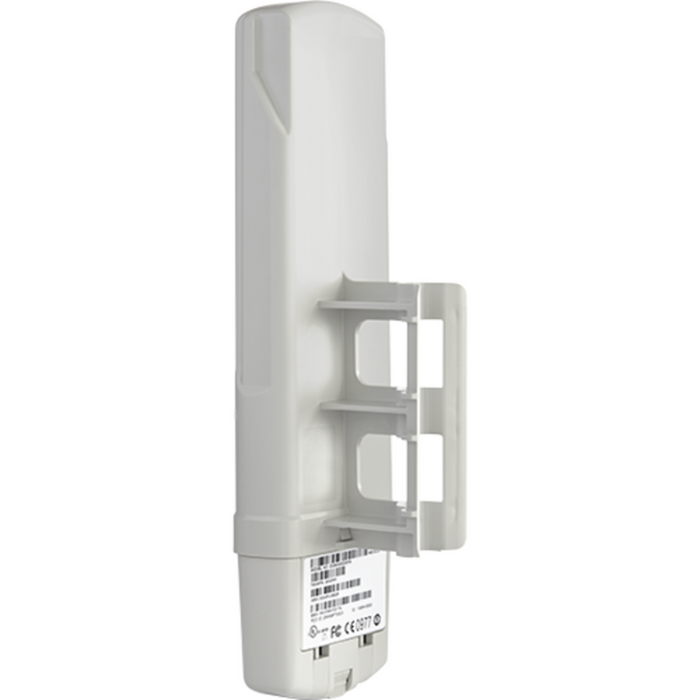

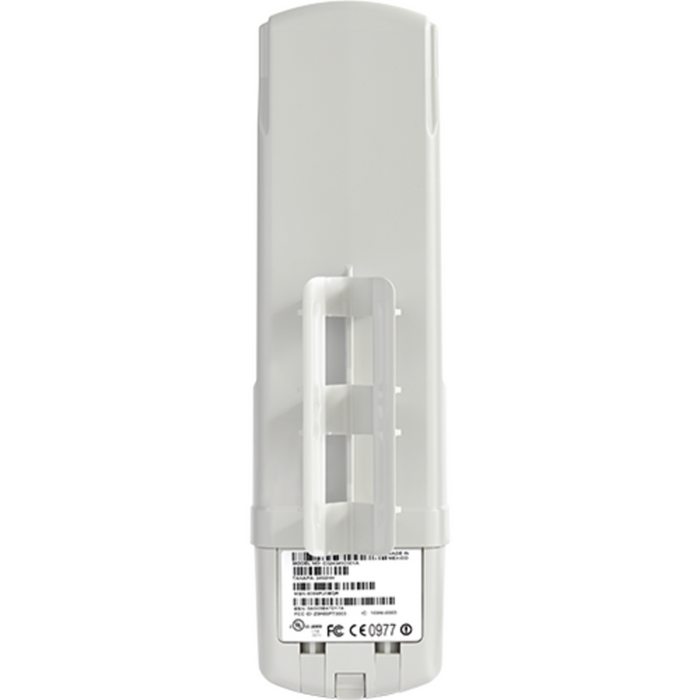

Cambium PMP 450 2.4 Ghz Subscriber Module 10mbps [C024045C002A]

The Cambium Networks Point-to-Multipoint (PMP) 450 Access Point (AP) can provide more than 90 Mbps throughput and will be interoperable with PMP 430 and PMP 100 Series Subscriber Modules (SM). Service providers with an installed base of PMP 100 subscribers can migrate to new high-throughput PMP 450 modules to enhance overall capacity; allowing more users and/or higher rate plans.

Utilizing 2x2 MIMO-OFDM technology, new deployments can take advantage of Cambium Networks proprietary feature set, while achieving data rates higher than 90 Mbps. From the available synchronization options to its diverse feature set, the PMP 450 provides flexible deployment options that make it a good fit for high capacity, high reliability networks. Cambium Networks provides exceptional wireless broadband connectivity solutions. With more than 3 million modules deployed in thousands of networks around the world, Cambium solutions are proven to provide cost effective, reliable data, voice and video connectivity.

Product Specifications:

• Channel Spacing: Configurable on 2.5 MHz increments
• Frequency Range: 2400 - 2483.5 MHz
• Channel Width: 5 MHz, 10 MHz or 20 MHz
• Physical Layer: 2x2 MIMO OFDM

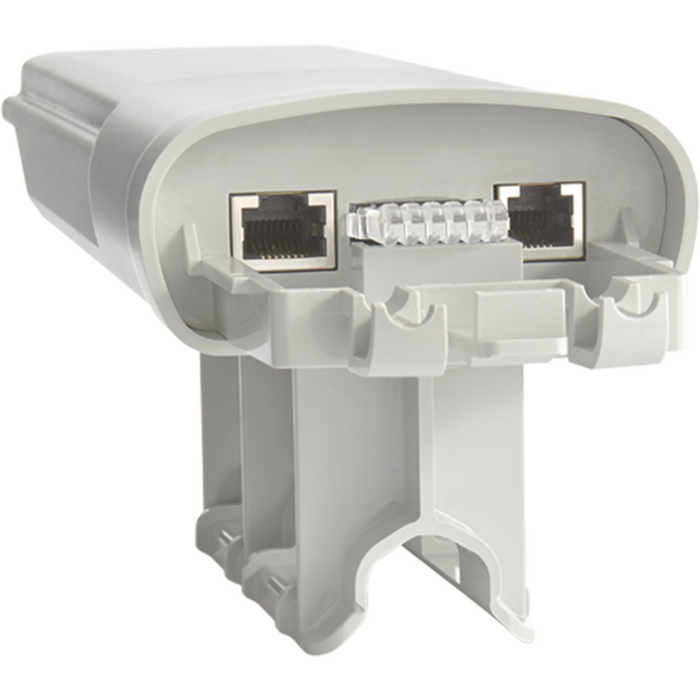

• Ethernet Interface: 10/100BaseT, half/full duplex, rate auto negotiated (802.3 compliant)
• Latency: 3 - 5ms
• Antenna Beamwidth: 55° azimuth, 55° elevation (both H&V)
• Transmit Power: -30 to +22 dBm (combined, to EIRP limit by region) (1 dB interval)
• Antenna Gain: 8 dBi Dual Slant, integrated patch
• Max. Transmit Power: 22 dBm combined
• Reflector Gain: +14 dBi
• Antenna Connection: Integrated patch antenna
• Environmental: IP55
• Temperature: -40°F to 131°F (-40°C to 55°C)
• Weight: 1 lb (0.45kg)
• Wind Survival: 118 mph (190 km/hour)
• Dimensions: 11.75" x 3.4" x 3.4" (30 x 9 x 9cm)
• Max. Power Consumption: 12W
• Input Voltage: 24 to 30V
