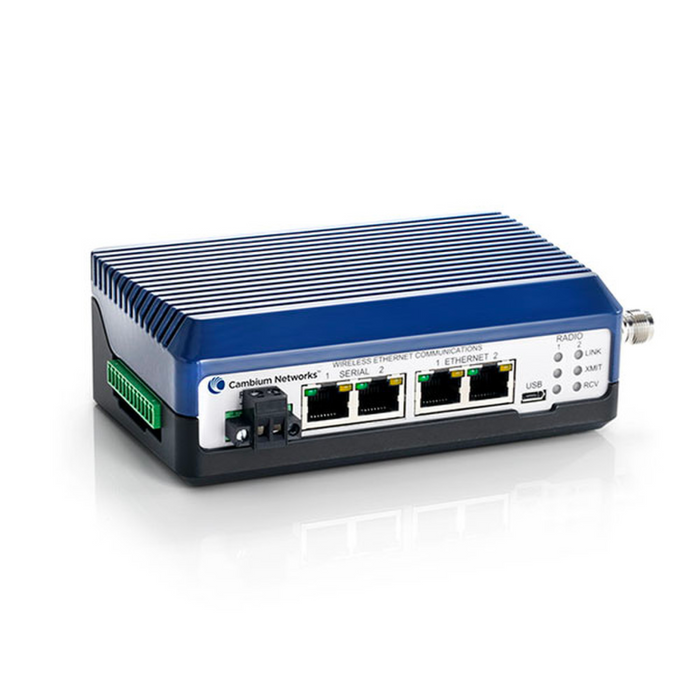

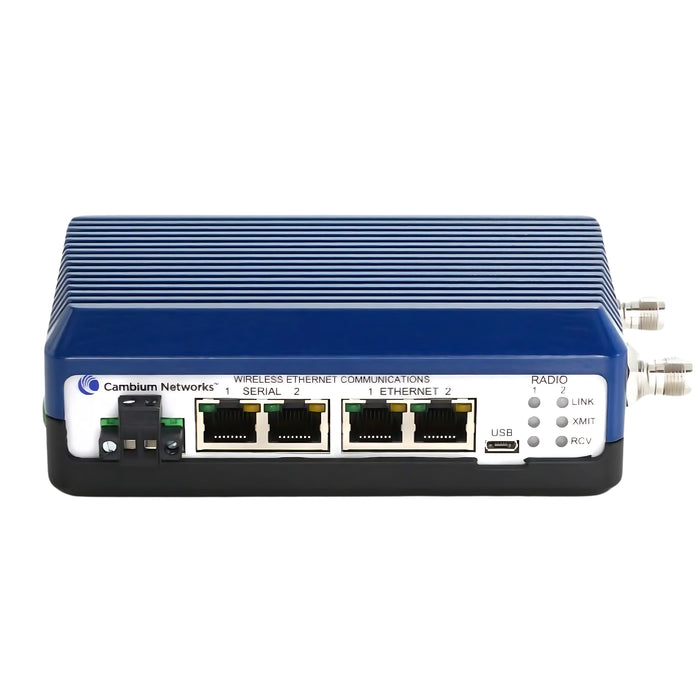

Cambium cnReach N500 700 MHz Radio [NB-N500710A-US]

For outdoor critical infrastructure operations, NB-N500710A-US transports process monitoring and control data from the remote sensor back to the operations center supporting real-time automated decision making and on-going analytics. Covering large geographic areas, hard to reach terrain and challenging spectrum environments, cnReach delivers reliable, secure connectivity to the petrochemical, electric utility, water/wastewater/stormwater and transportation industries. cnReach eases the migration to modern networks by combining legacy serial and analog/digital I/O with TCP/IP and Ethernet connectivity. Fully integrated into a 'single pane-of-glass' management platform (cnMaestro) cnReach helps bridge the IT/OT sides of complex organizations. Combining cnReach's licensed and unlicensed narrow-band radios with Cambium Networks' broadband technologies, industrial organizations are delivering end-to-end industrial Internet of Things solutions today

Product Features:

• Licensed 700 MHz
• Secure communications with AES 128/256-bit encryption with password authentication
• Highly reliable communications with access point synchronization and adaptive modulation
• Sophisticated network planning with LINKPlanner, a no-charge planning tool enabling network designers to predict both capacity and availability of networks crossing all of Cambium's technologies
• Supported by cnMaestro software for monitoring the status of entire networks carrying traffic across sensors

Product Specifications:

• Frequency Range: 757 - 758 MHz and 787 - 788 MHz
• Output Power: 10 mW to 5W (10 dBm to 37 dBm)
• Step Size 10 mW
• Modulations: MSK / QPSK / 8PSK / 16QAM / 32QAM
• Capacity: 10 kbps to 1 Mbps
• Range: Up to 70 miles
• Packet Handling: Layer 2 bridge, Layer 3 static routes, VLAN support
• Error Correction: Up to 32-bit CRC, Retransmit on error
• Data Encryption: 128/256-bit AES
• Management: Web-based Interface via HTTP/HTTPS, LINKPlanner integration (capacity and availability planning), Remote Management via SNMP, cnMaestro integration (roadmap), Support for configuration files, remote software upgrades, Built-in diagnostic tools via web interface such as RF Ping and RF Throughput
• Ethernet Interfaces: 2 x RJ-45, 10/100BaseT, Full Duplex, rate auto negotiated (802.3 compliant)
• Serial Interfaces: 2 x RJ-45, RS-232/422/485, up to 230.4 kbps
• RF / Antenna: TNC RF connectors
• Power Input: 10-32VDC with reverse polarity protection
• Dimensions: 6.625 x 3.45 x 1.835" (168 x 876 x 466 mm)
• Weight: 1.54 lbs. (0.70 kg)
• Operating Temperature: -40 to 60°C
• Humidity: 95% operating humidity @ 40°C non-condensing
• HAZLOC: UL-Approved to Class 1 / Div 2
