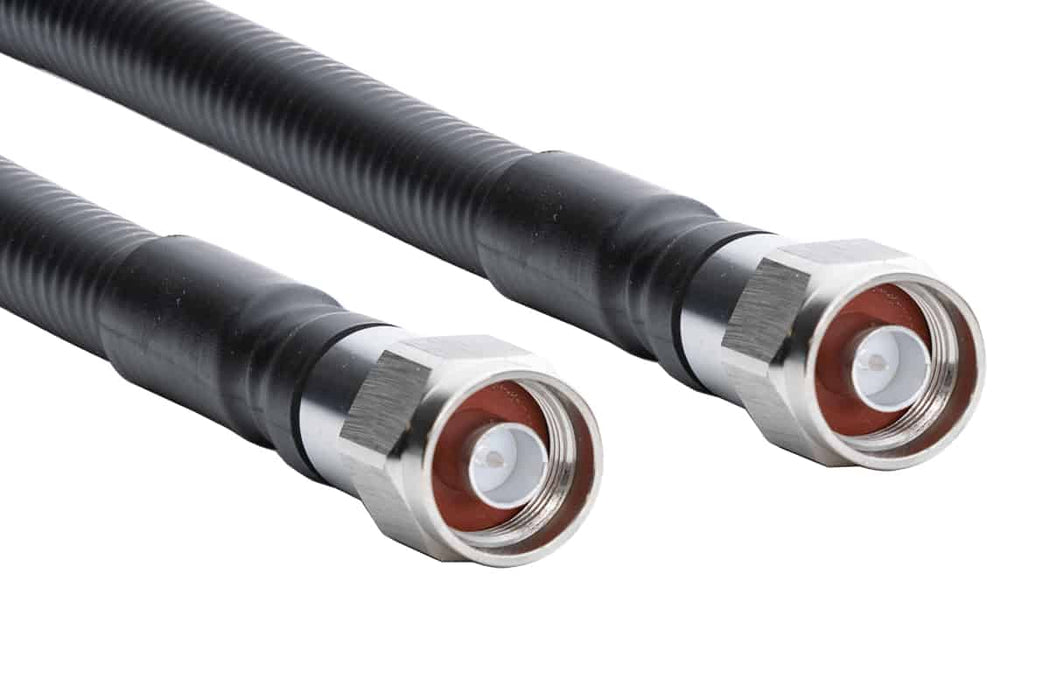

Gamma Electronics N Male to N Male 6FT 1/2" Superflex Jumper w/Cold Shrink
TNM-SFLEX-TNM-72-SDL
by Gamma Electronics
Sold out
Original price
$78.88
-
Original price
$78.88
Original price
$78.88
$78.88
$78.88
-
$78.88
Current price
$78.88
Gamma Electronics RF Jumper Cable Kit, 72-SDL is a low loss low PIM jumper kit, an optimal choice when it comes to outdoor RF cable connectivity. These kits are particularly easy to install and can be ordered with or without cold shrink. By choosing the combination of our carrier approved weatherproofing and jumper cables, you are getting the optimal weatherproofed jumper. Our kits include our rugged, UV resistant, low loss, low PIM, corrosion resistant jumper cable and our SDL series of IP68 performing UV resistant cold shrink. You have the option to procure our jumper with or without the cold shrink protection.
Key Characteristics
- 50 Ohm Impedance
- Consistent V.S.W.R performance and Low (PIM) Passive inter modulation; equals fewer dropped calls and a better performing network
- RoHS Compliant
- Independently tested and labelled for critical properties and tracking number
- Robust connector protect on, strain relief and torque protection
- Gamma’s cold shrink is by far superior over competitor’s products and easily surpasses the IP68 weatherproof standard
- Special factory design and assembled jumper, which provides excellent electrical and mechanical performance
- High performance corrosion resistant factory installed connectors
- Cable jacket is low smoke halogen free and flame retardant providing a safer network
Specifications
- Cable: 1/2" Super flex RF
- Frequency Range 0 - 6 GHz
- Center Contact Connector Brass, Silver Plated
- Outer Contact Connector Brass, Albaloy Plated
- Coupling Nut Connector Hexagon nut, Brass, Albaloy Plated
- Connector Dielectric PTFE
- Gasket Silicone Rubber
- Jacket Halogen Free, Low Smoke, Flame Retardant (LSZH）
- Return Loss, dB -20dB Max.
- Minimum Bend Radius, mm 32
- Installation Temperature -40° to 60° C
- Operation Temperature -45° to 85° C
- Sealing Standard IP68
- PIM/ IMD (2*43dBm) ≤-155 dBc
