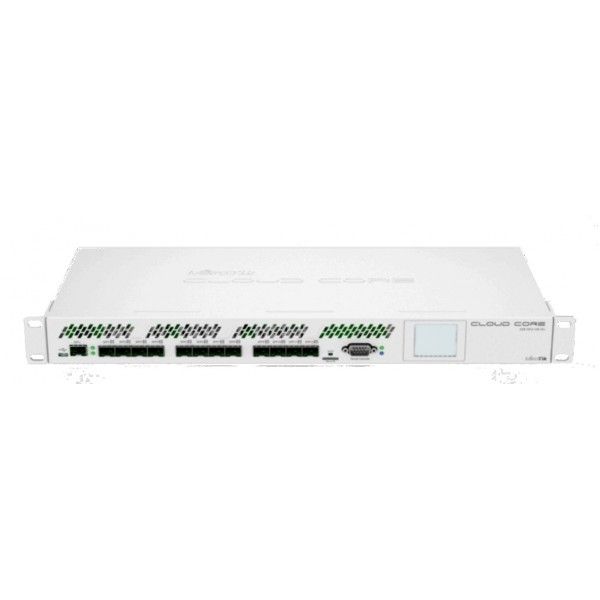

MikroTik CCR1016 Cloud Core Router [CCR1016-12S-1S+]

This product has been discontinued by MikroTik. Suggested replacement is the CCR2004-1G-12S+2XS.

The MikroTik CCR1016 is an industrial grade router with a cutting edge 16 core Tilera CPU. If you need many millions of packets per second - Cloud Core Router is your best choice. This model has twelve SFP ports and one SFP+ port for 10G connectivity. It is available in a 1U rack mount case and also has a serial console port, a touchscreen LCD and a Type A USB port. The CCR1016-12S-1S+ comes with redundant power supplies and one RJ45 SFP 10/100/1000M copper module. Now being shipped with full-size Type A USB (instead of microUSB) and RJ45 serial port (instead of RS232)

• 12x SFP ports for 1 Gigabit connectivity
• 1x SFP+ port for 10 Gigabit connectivity
• 16 core Tilera CPU, 1.2GHz clock per core
• 12MB total on-chip cache
• State of the art TILE GX architecture
• Ports directly connected to CPU
• 1U rack mount case
• Color touchscreen LCD display
• Two power supplies for redundancy

• CPU Tilera Tile-Gx16 CPU (16-cores, 1.2Ghz per core)
• Memory 2GB built-in RAM
• SFP Twelve SFP ports and one SFP+ port
• Expansion Type A USB port
• Storage 128MB Onboard NAND
• Serial port RJ45 serial port
• Extras Beeper; voltage, current and temperature monitoring, fan, SD Card slot
• Power options 2x IEC C14 standard PSU units built in, 110/220V
• Board dimensions 290x155mm
• Temperature Max ambient temperature 50° @ 1.2GHz; 70° @ 1GHz CPU core frequency
• OS MikroTik RouterOS v6, Level 6 license
• Included CCR1016-12S-1S+: router in a 1U case with LCD, 2 x IEC power cables, RJ45 SFP
