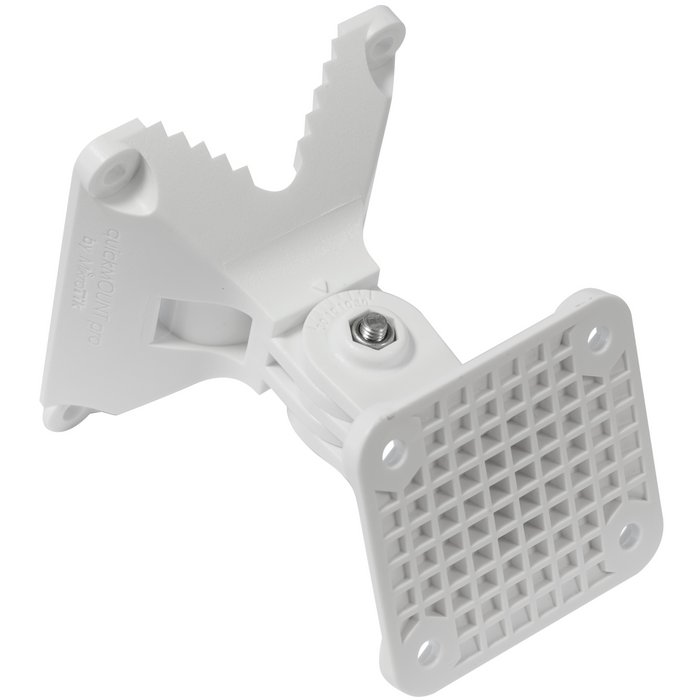

MikroTik quickMOUNT Pro Light Head Grid Wall Mount Adapter [QMP-LHG]

The quickMOUNT pro is an advanced wall or pole mount adapter for small point to point and sector antennas. It gives the possibility to turn antenna within 140° both in horizontal and vertical plane. With the quickMOUNT pro it is possible to perfectly set antenna alignment using integrated graduated scale.

• It's simple and low cost
• Adjustable horizontally and vertically
• Wall or pole mountable
• Durable due to it's special plastic composite material - anvilNITE (TM)

• Dimensions 95 x 88 x 112 mm (3.75 x 3.5 x 4.4 in.)
• Tube diameter: 35 mm (1.4 in.)
• Max tube diameter to which mount can be attached: 65 mm (2.56 in.)
• Maximum antenna weight: 1.5 kg
• Maximum wind load: 100 N
• Turn angle for MikroTik products: 140°
• Compatible devices: LHG 5
• anvilNITE

• (4) 6x30mm wall anchor
• (4) Self tapping screw
• (4) M6x20 buton head screw
• (4) M6 locking nut
• (1) 50-70mm hose clamp
