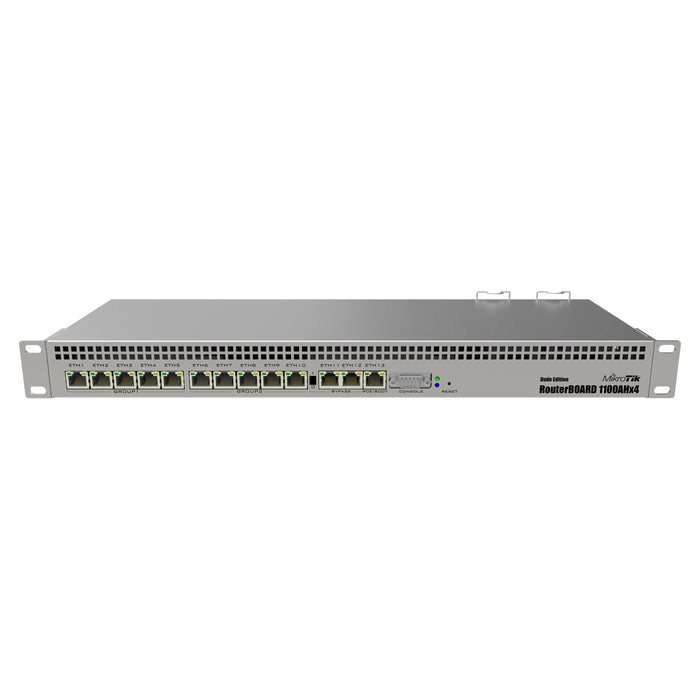

MikroTik RB1100Dx4 / RB1100AHx4 13-Port Gigabit Router Dude Edition [RB1100Dx4]

Introducing the MikroTik RB1100AHx4, a 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128). The MikroTik RB1100x4 comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).

• Architecture: ARM 32bit
• CPU: AL21400
• CPU core count: 4
• CPU nominal frequency: 1.4 GHz
• Dimensions: 443 x 148 x 44 mm
• RouterOS license: 6
• Operating System: RouterOS
• Size of RAM: 1 GB
• Storage size: 128 MB
• Storage type: NAND
• MTBF: Approximately 200'000 hours at 25C
• Tested ambient temperature: -40°C to 70°C
• IPsec hardware acceleration: Yes
• Number of AC inputs: 2
• AC input range 100-240
• Number of DC inputs: 2 (2-pin terminal, PoE-IN)
• 2-pin terminal input Voltage: -48, 12-57 V
• Max power consumption: 20 W
• Cooling type: Passive
• PoE in: 802.3af/at
• PoE in input Voltage: 20-57 V
• Memory card type: microSD
• Memory Cards: 1
• Serial console port: RS232
• Certification: CE, EAC, ROHS
• IP: IP20
