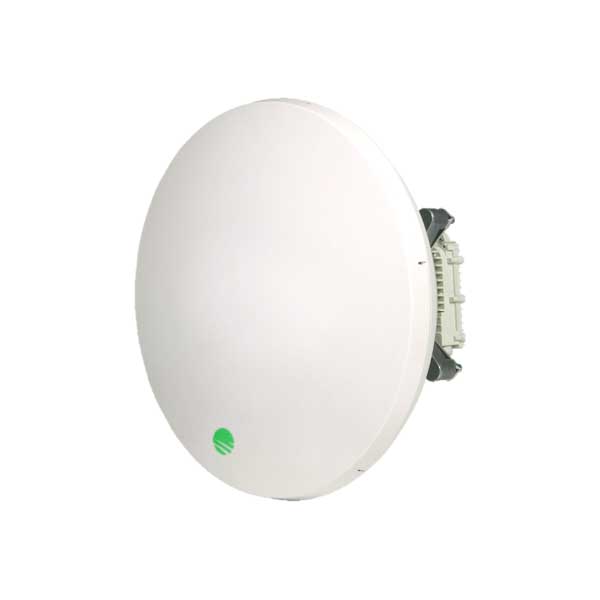

Siklu EtherHaul E-band 2ft Antenna with Mounting Kit [EH-ANT-2FT-B]

The Siklu EtherHaul™ E-band 2 ft Antenna supports a variety of ODUs depending on the intended application, from street level to roof top, from short to long reach. The EH-ANT-2ft-G can be used in place of EH-ANT-2FT-B, if out of stock.

• Frequency Range: 71GHz - 86GHz
• Regulatory Compliance: ETSI: EN 302 217-4-2 V1.5.1 Class 2, FCC: 47CFR101
• Gain: 50dBi ± 2dB
• 3 dB Beam: 0.5°
• Polarization: Linear Vertical/ Horizontal
• Input Power: 10W (Max.)
• Interface: Circular waveguide E-band
• Radome: ABS
• Minimum Temperature: -55°C (-67°F)
• Maximum Temperature: +71°C (159.8°F)
• Ingress Protection (IP) Rating: IP67

EH-ANT-2FT-B - External 2FT antenna compatible with: EH-1200FX, EH-1200TX, EH-2200FX, EH-2200TX, EH-2200-AES, EH-2500FX, EH-5500FD, EH-8010-AES, EH-8010
