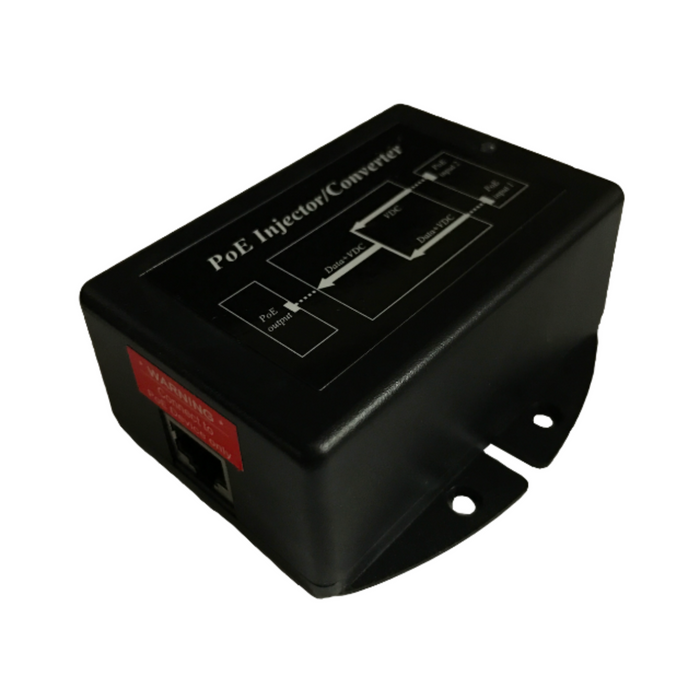

Tycon Power 802.3af to 802.3at 30W Gigabit PoE Converter [POE-CONV-2AF-AT]

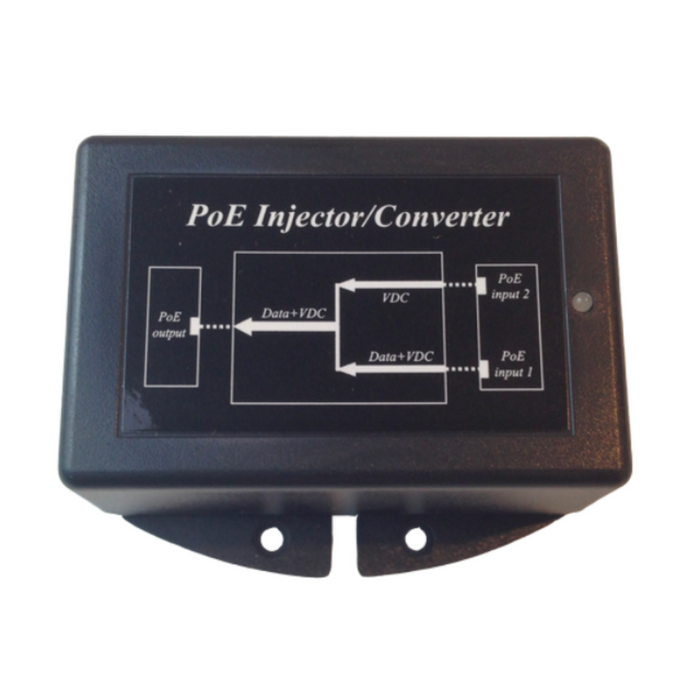

The POE-CONV-2AF-AT is a unique Gigabit PoE converter that allows a customer to use existing PoE switches to provide PoE+ functionality. They work by turning 802.3af ports into one 802.3at port. There are two RJ45 sockets for input and one RJ45 socket for the output. One input accepts data and power, while the second input only accepts power. The design is isolated so input and output are isolated. The devices include protections for short circuit and overload.

Product Features

• Very Compact Size
• Converts two 802.3af 16W ports to one 802.3at 30W port
• Allows use of standard PoE switches to power higher power devices

Product Specifications

• Input: Qty 2 802.3af Mode A or 48V Passive POE
• Output: 802.3at Mode A 48V 30W, 2 Pair PoE

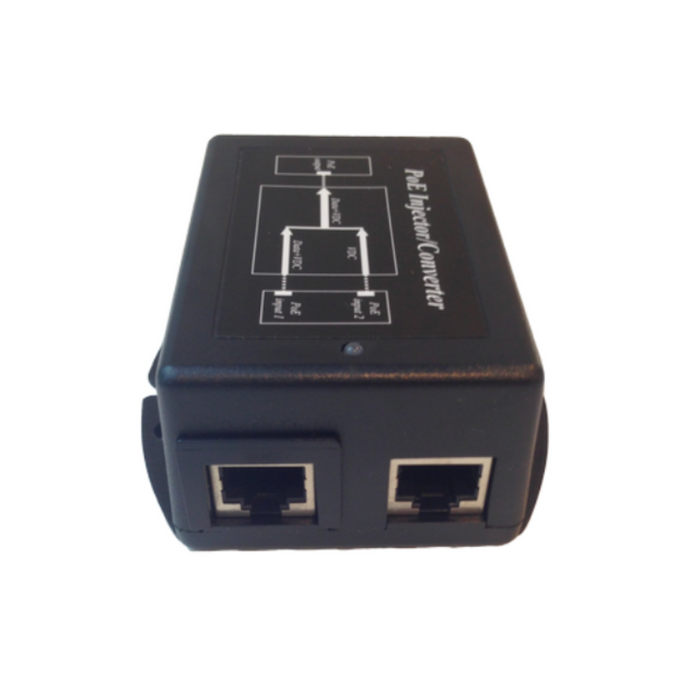

• Input Connector: Shielded RJ45 Socket x2

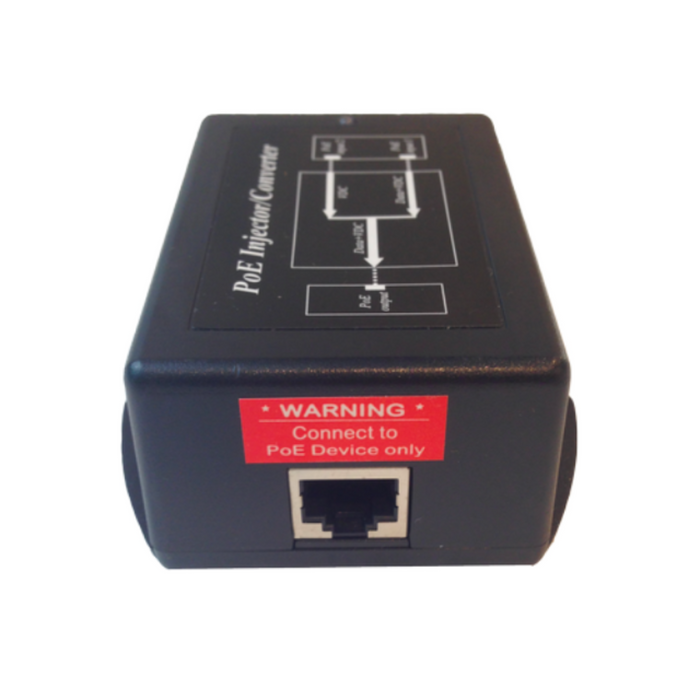

• Output Connector: Shielded RJ45 Socket
• Load Regulation: 5%
• Line Reg, Ripple, Noise: 1%
• Ethernet Speed: 10/100/1000MB, GigE, Gigabit
• LED: Blinking Red: Only 1 input powering / Solid Red: Two inputs powering / Solid Green: Output is active with device plugged in
• Efficiency: 90% Min
• EMC Standards: FCC Class B NE55022 Class B
• Isolation Voltage: 1500VDC
• Isolation Resistance: 100M Ohms Minimum
• Operating Temperature: -30 to +60°C (-22 to +140°F)
• Operating Humidity: 5% to 90% non-condensing
• Storage Temperature: -40 to+85°C (-40 to +176°:F)]
• Dimensions: 65 x 45 x 26mm (2.6 x 1.8 x 1")
• Weight: 62 g (2.2 oz)
