Tycon Power Ethernet Surge Protector [TP-ESP-100-POE24]

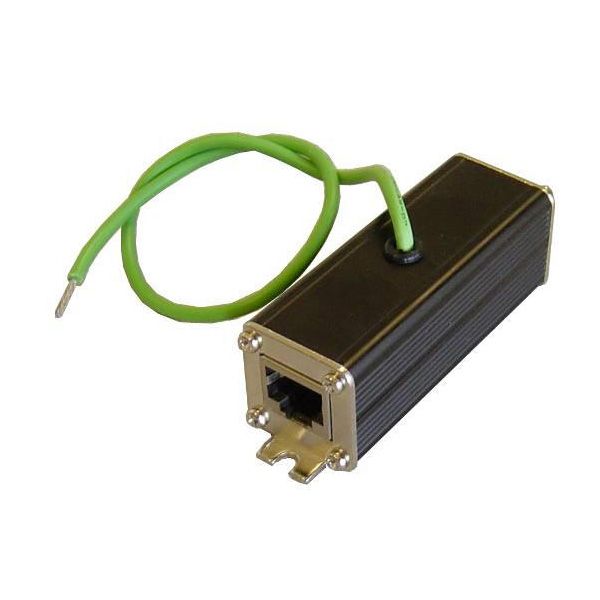

Tycon TP-ESP-100-POE24, is a low cost ethernet surge protector to help protect sensitive equipment from surges caused by lightning and grid power fluctuations. It has a full metal body for improved EMI suppression and has integral mounting feet and a separate ground wire. It are designed for indoor or outdoor use inside a weatherproof enclosure. The ESP-100-POE24 is compatible with POE systems up to 24V. Protection is provided on all 8 CAT5 wires.

Product Features:
100Mbps Data Rate 7.5V Data / 40V POE Clamping Voltage CAT5 and CAT5e Compatible. All 8 pins protected. Shielded jacks and full metal housing Complies with IEC 61643-21 Standard

• Integral Mounting Feet and Ground Wire

Product Applications:
Wireless Access Points and Client Devices IP Phone and Security Camera Systems Industrial Control Systems

Product Specifications:

• Operating Voltage: Data 5V; POE 24V
• Clamping Voltage: 7.5V Data (Pins 1,2,3,6) 40V POE (Pins 4,5,7,8)
• Max Surge Discharge Current: 5KA (8/20us)
• Peak Pulse Current: 100A (10/1000us)
• Protection Mode: Differential & Common Mode
• Insulation Resistance: > 1000MOhm
• Shunt Capacitance: < 25pF
• Data Rate: 10/100 Mbps
• Response Time: < 5ns
• Operating Temperature: -40°F to 185°F (-40°C to 85°C)
• Storage Temperature: -40°F to 257°F (-40°C to 125°C)
• Operating Humidity: 0% to 95%, non condensing
• Size: 3.2" x 1" x 1" (82 x 25 25mm)
• Weight: 2.4oz (68g)
• Ground Wire: 14 AWG, 10" (26cm) long
• Connectors: RJ45 Shielded Jacks
• IEC Standard: 61000-4-5, 61643-21
