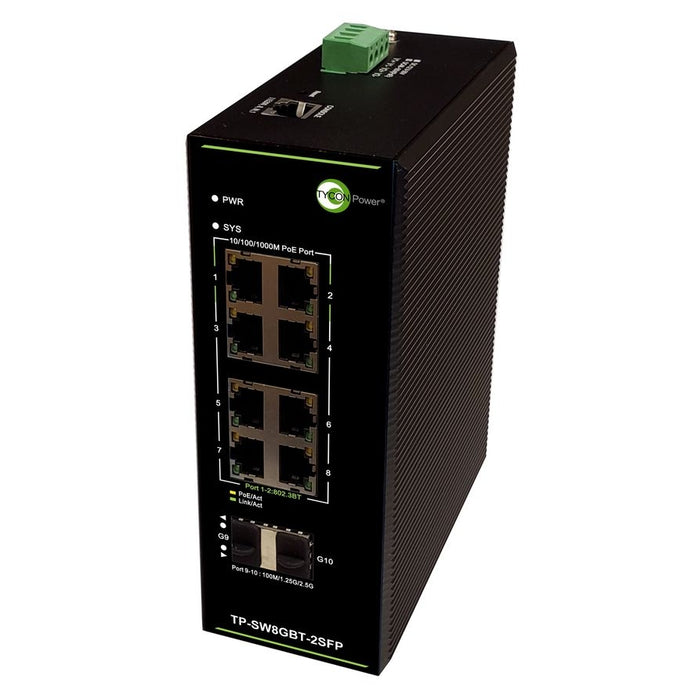

Tycon Managed Industrial PoE++ Switch [TP-SW8GBT-2SFP]

The TP-SW8GBT-2SFP Power over Ethernet (PoE) 10 port Gigabit switch offered by Tycon is a fully automatic high speed Layer 2+ Ethernet manageable switches. The 10 port model has 2 GigE PoE++(90W) and 6 GigE PoE+(30W) and 2 SFP 2.5G ports. The PoE ports are manageable via the user interface. The maximum total power for all ports is an impressive 360W. They utilize industry standard 802.3at/bt detection for fully automatic operation.

The switch features security protocols like SSH for secure access of the switch command interface. The interface can be accessed via the serial console port or any of the Ethernet ports. The command interface can be controlled via web browser, command line interface(CLI), TELNET, SSH or SNMP.

With L2+ features, the switches provide better manageability, security, QOS features and performance. VLAN, Port Mirroring, Port Isolation, IGMP Snooping, DHCP Snooping, LLDP, ARP Inspection, Storm Control, IP Source Guard, Access Control Lists, PoE++ management are just some of the features available with this Industrial PoE Switch.

Spanning Tree, Jumbo Frames, Cable diagnostics, Ring Topology are also supported.

The switches are compatible with Green Ethernet standards. The switch can automatically power down the port Ethernet drivers when a link is not active. Active mode is resumed without loss of any packets when the switch detects the link is active. The switches also automatically adjust the signal strength depending on cable length to save power.

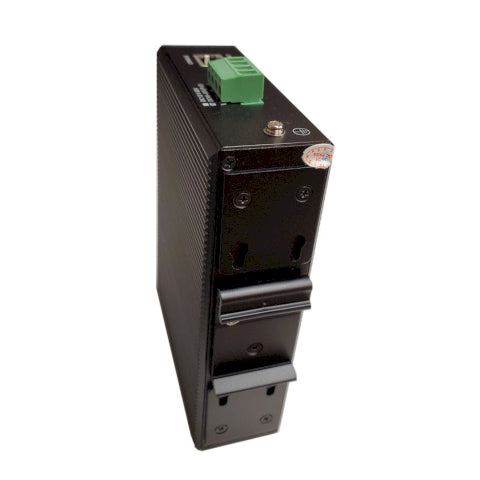

The switches require a 48VDC to 57VDC input on the dual input wire – terminal connector which is capable of accepting up to 12AWG wire.

The units are compatible with Category 5 or higher Ethernet cables with network distances up to 100m. The optical range for fiber ports is up to 120Km. The RJ45 connectors are shielded and grounded to the case. The units have surge protection on all ports and are conformal coated for moisture protection. They have a wide operating temperature range for outdoor and industrial applications.
