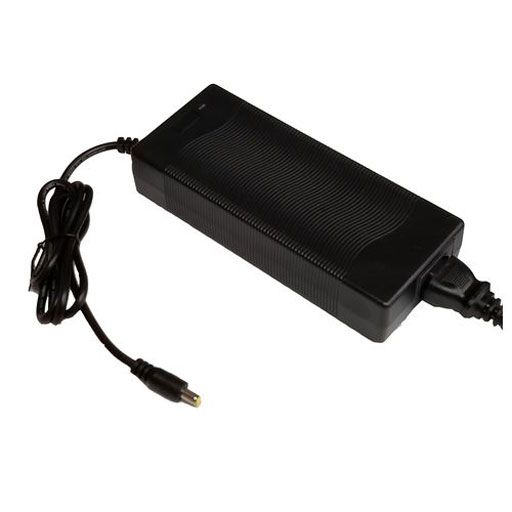

Tycon Solar 24VDC 4.35A 120W Battery Charger 120-240VAC in 2 Wire Output
The TP-BCxx-120 battery chargers provide up to 120W of total charging power. The battery charger is compatible with GEL/AGM type sealed lead acid batteries. The charger has various protections for short-circuit, over-load, over-voltage, over-current and over-temp. It operates over a wide temperature range. . The unit comes with a removeable AC cord with a North American Plug. The units are auto-ranging so they can work from 100VAC to 240VAC.
• 120W Total Power. 12V, 24V and 48V models.
• Small Form Factor, Low Cost
• Over-Voltage, Over-Current, Over-Temp, Overload, Short-Circuit Protections
• Led indicator: Red=Charging, Green=Battery Full
• Wide temperature operation
• CE, UL and FCC Certifications
Applications
• Wireless Base Stations, Cellular Base Stations
• Surveillance Systems
• Battery Backup Systems
Product Features
• Total Power Available (for Load and Battery charging) 120W
• Nominal Battery Voltage 24VDC
• Battery Charge Max Current 4.35A
• Battery Charger Voltage 28.8V
• Load Regulation 5%
• Line Regulation 3%
• Efficiency 85% Minimum
• Output Connector 2 Wire ; 914mm (36”) long cable
• EMC Standards FCC Class B , NE55022 Class B
• Safety Standards UL60950-1, CSA 22.2, TUV EN60950
• AC Power Input (+-10%) 120VAC / 240VAC , 50/60Hz
• AC Input Current 2.5A Max
• HiPot Test 3000VAC
• Insulation Resistance 50MOhm, 500VDC
• Operating Temperature -30 to +55C (22 to +131°F)
• Operating Humidity (RH) Up to 90% (non condensing)
• Storage Temperature -40 to +85°C (-40 to +185°F)
• Storage Humidity Up to 90% (non-condensing)
• MTBF (Mean Time Between Failure) >50,000hrs
• Dimensions (L x W x H) 172 x 72.5 x 34.5mm ( 6.8 x 2.9 x 1.4”)
• Weight 439g (15.5oz)
• Warranty 3 Years
