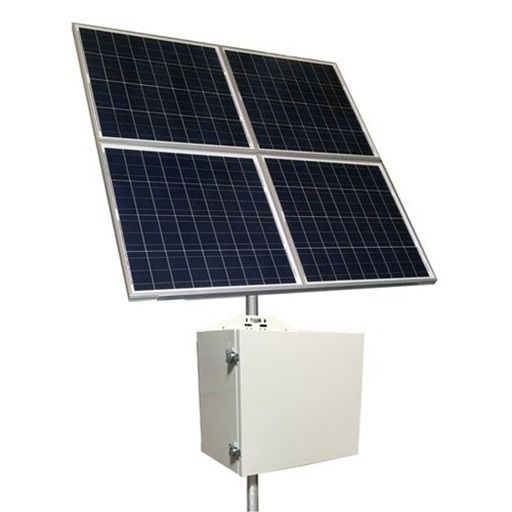

Tycon Solar RemotePro 340W 12/24/48V 400Ah Battery Remote Solar Power System

The systems are available with MPPT temperature compensated solar charge controllers with an RS485 interface for remote monitoring with a Tycon TPDIN-Monitor-WEB3 or TP-SC-WIFI adapter. The solar controllers turn off the load automatically if the battery voltage drops too low, in order to preserve battery life. The load turns on automatically once the battery voltage recovers. The outdoor enclosures are powder coated steel or aluminum. They are hinged and gasket sealed with a locking closure that accepts a common padlock for security. They have four cable gland ports for CAT5/6 cable, antenna cables/connectors or other cabling. Included is a thermostatically controlled fan assembly which turns on automatically when the temperature exceeds 45°C.

The high quality solar panels have a 25 year power output guarantee and a +5W output tolerance. The enclosures and solar mount can be mounted to a wall or pole (2-4”) with the included mounting system.

Batteries are a Non-Spillable Valve Regulated Sealed Lead Acid Advance Glass Matt (AGM) type which have excellent temperature and deep discharge performance. Expected battery life exceeds 5 years.

• Complete 340W Remote Power Solution for Off-Grid Operation
• Weatherproof Outdoor Enclosures with up to 400Ah Battery
• Enclosures can be Wall or Pole Mounted (pole not included)
• High Performance Sealed Lead Acid AGM Batteries
• MPPT Solar Charge Controllers with RS485 Interface
• Thermostatically Controlled Ventilation

• Battery Type: Maintenance Free Non-Spillable Valve Regulated Sealed Lead Acid AGM
• Battery Life: 5+ years
• Enclosure Type: ENC-STL-24x24x16 Pole/Wall Mount, Powder Coat Steel
• Enclosure Size: 23.9 x 23.9 x 16.1" (608 x 608 x 409.5mm)
• Internal Mount Features: DIN Rail/Flat Plate Mounting Brackets Welded to Door and Back
• Solar Panel Dims (L x W x T): 340W Solar Array 62” x 54” x 1.4”
• Operating Temperature: -22°F to 140°F (-30°C to +60°C)
• System Weight (no batteries): 136lb
• Battery Weight: 40.3lb (18.3 kg) (Each 50Ah Battery)
• Wind Speed Rating: 90MPH
• Battery Voltage: 12/24/48V
• Battery Capacity @12V: 400Ah
• Rated Continuous Power with 6hrs Peak Sun: 74W
• Backup Time @ Rated Power: >32hrs
• Output: 340W

(1) Large Steel Enclosure

(1) 400ah Battery

(1) 20A MPPT Charge Controller

(1) Set of mounting hardware

(1) Set of cabling
