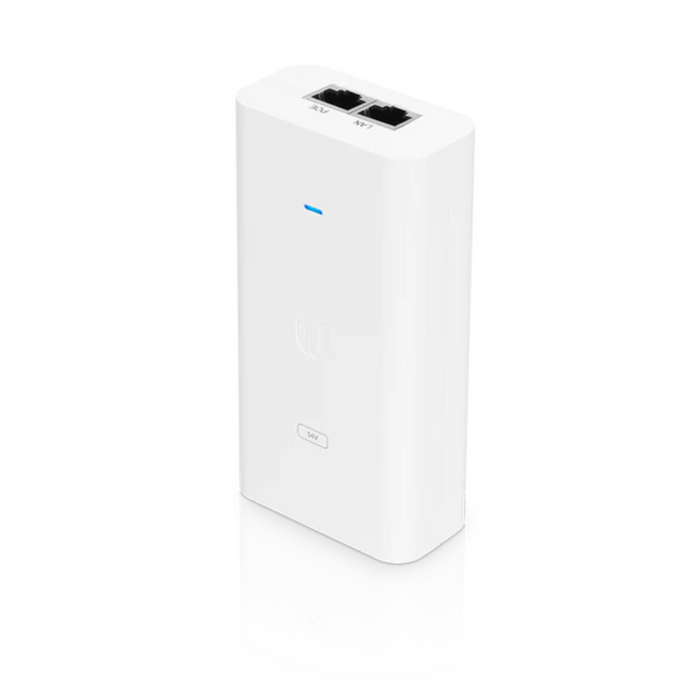

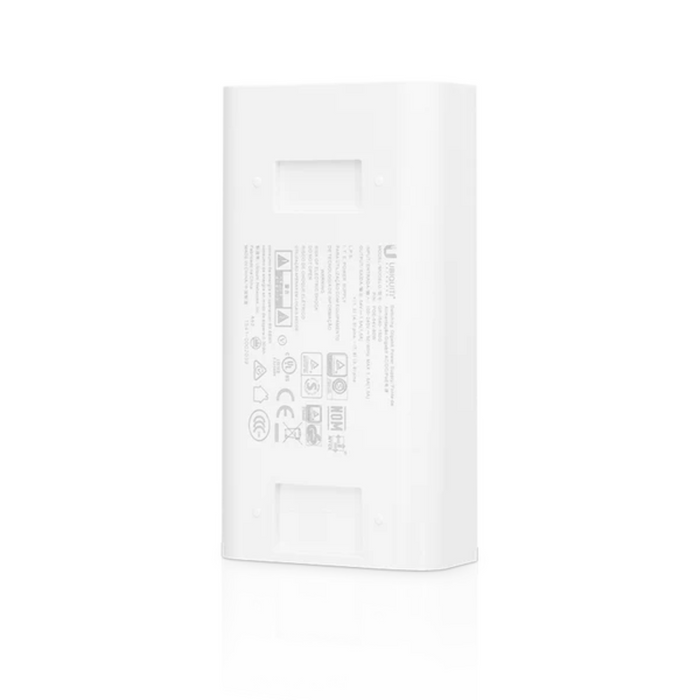

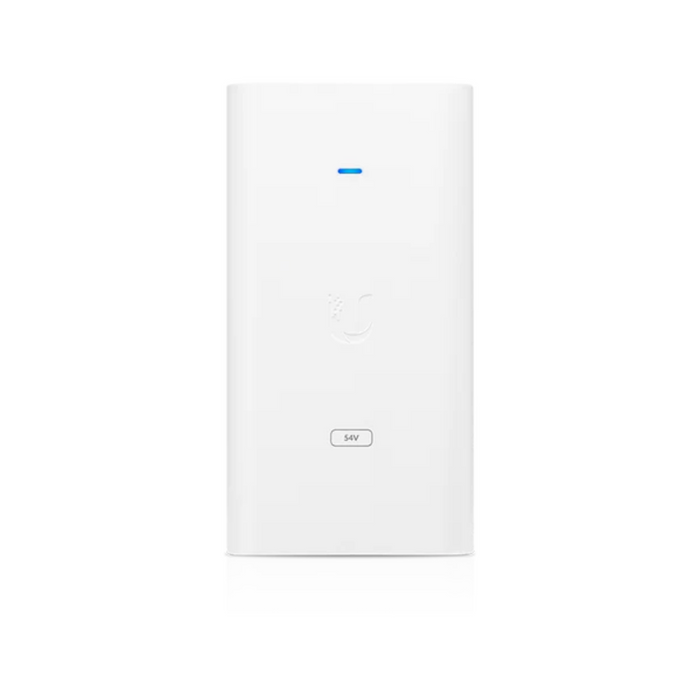

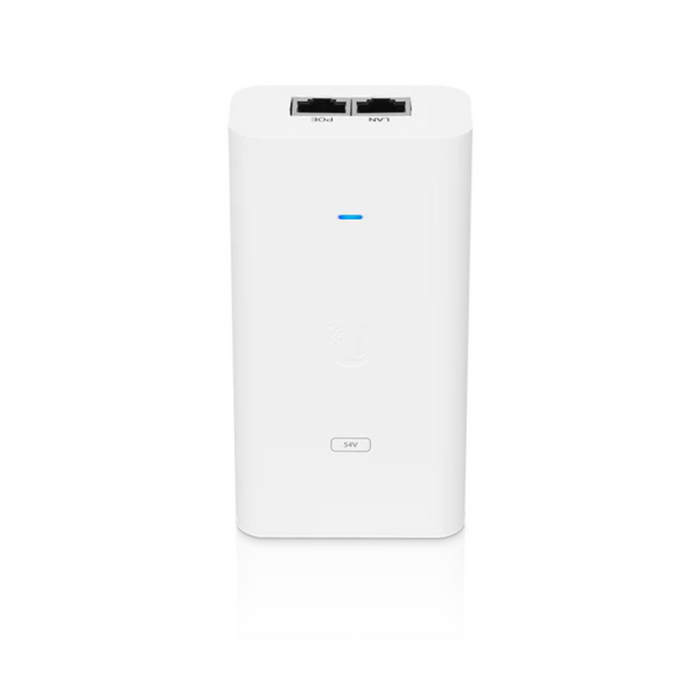

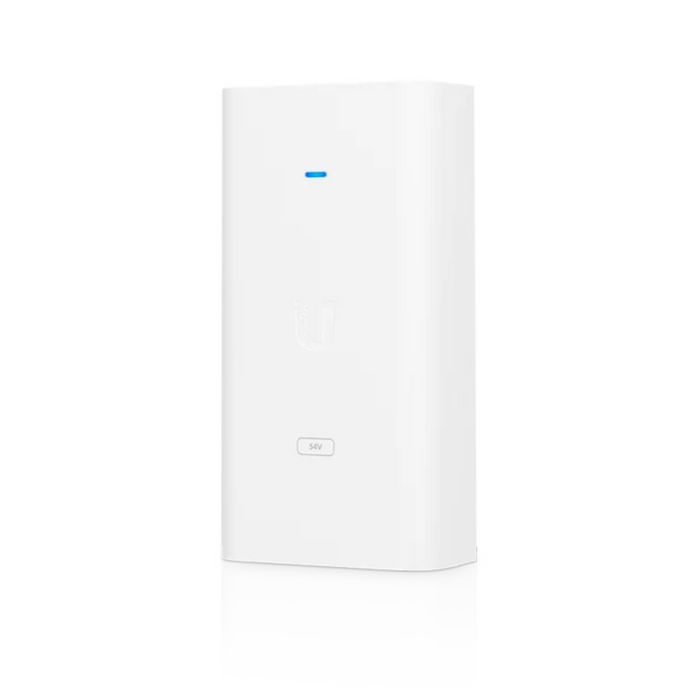

Ubiquiti EdgePoint PoE Injector, 54VDC, 80W [POE-54V-80W]

The Ubiquiti Networks POE-54V-80W is a 54VDC 1.5A 80W replacement PoE adapter for EdgePoint that provides earth grounding and surge protection for (ESD) events.

Ubiquiti PoE Adapters are highly reliable, provide earth grounding, and surge protection to help protect against electrostatic discharge (ESD) events. ESD attacks are the leading cause for device failures.

• Surge protection
• Clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground

• 123 x 65 x 34 mm (4.84 x 2.56 x 1.34")
• Weight: 299 g (10.55 oz)
• Output Voltage: 54 VDC @ 1.5A
• LAN Activity Indicator: No
• Gigabit LAN Port: Yes
• Remote Reset Capability: No
• Reset Button: No
• Input Voltage: 100 - 240 AC @ 50/60 Hz
• Input Current: 0.8A @ 120 VAC ; 0.4A @ 240 VAC
• Inrush Current: <80A Peak @ 120 VAC ; <120A Peak @ 230 VAC
• Efficiency: 87+%
• Output Ripple: 1% Max.
• Switching Frequency: 100 kHz Max.
• Line Regulation: ± 1%
• Load Regulation: ± 3%
• 4-Pair Powering: Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)
• Operating Temperature: 0 to 40°C (32 to 105°F)
• Storage Temperature: -35 to 70°C (-22 to 158°F)
• Operating Humidity: 35 to 95% Noncondensing

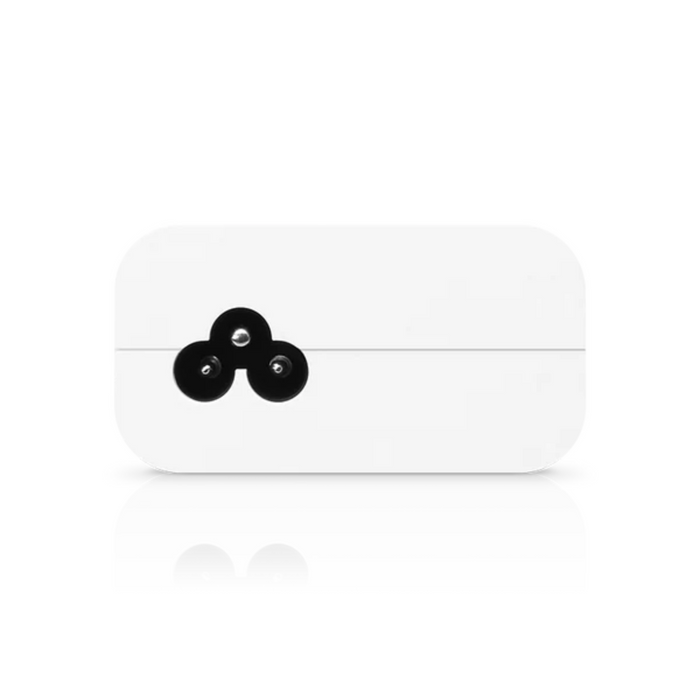

• AC Connector: IEC-320 C6

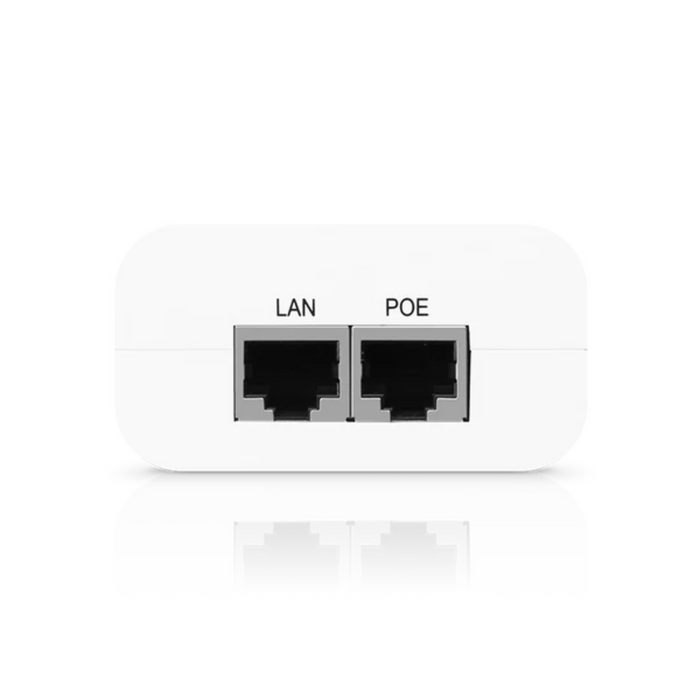

• Data IN / POE: RJ45 Shielded Socket
• Surge Protection: Difference and Common Mode
• Clamping Protection: 11V Data, 60V Power
• Max. Surge Discharge: 1500A (8/20 µs) Power
• Peak Pulse Current: 36A (10/1000 µs) Data
• Shunt Capacitance: <5 pF data
• Response: <1 ns
