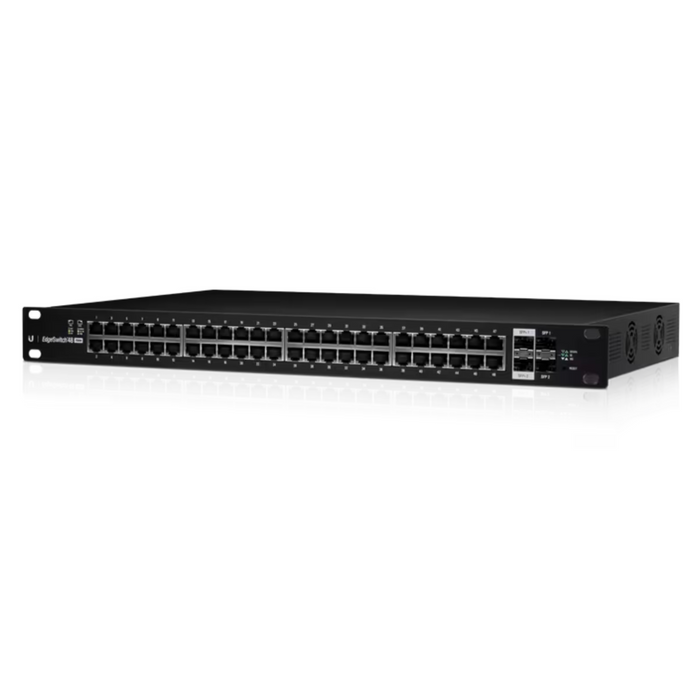

Ubiquiti EdgeSwitch 48-Port PoE Switch 750W [ES-48-750W]

The EdgeSwitch ES-48-750W is 48-Port, Managed PoE+ Gigabit switch with 750W non-blocking throughput switching performance, Gigabit Ethernet RJ45 and SFP+SFP Ports and Auto-Sensing IEEE 802.3af/at PoE. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides layer-3 routing capabilities.

Product Features:

• (48) Gigabit RJ45 ports
• (2) SFP+ ports
• (2) SFP ports
• Total, non-blocking throughput: 70 Gbps
• Maximum power consumption: 750W
• Supports POE+ IEEE 802.3at/af and 24V Passive PoE
• Rackmountable

• Dimensions: 485 x 43.7 x 374.6mm (19.09 x 1.72 x 14.75")
• Weight: 6.5kg (14.3lbs)
• Total Non-Blocking Throughput: 70Gbps
• Switching Capacity: 140Gbps
• Forwarding Rate: 104.16Mpps
• Max. Power Consumption: Includes PoE Output: 750W, Excludes PoE Output: 64W
• Power Method: 100-240VAC/50-60Hz, Universal Input
• Power Supply: AC/DC, Internal, 750W DC
• LEDs per Port: RJ45 Data Ports: PoE, Speed/Link/Activity, SFP/SFP+ Data Ports: Speed/Link/Activity
• Networking Interfaces: (48) 10/100/1000Mbps RJ45 Ethernet Ports + (2) 1/10Gbps SFP+ Ethernet Ports + (2) 1Gbps SFP Etherent Ports
• Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band
• Certifications: CE, FCC, IC
• Rackmount: Yes, 1U High
• ESD/EMP Protection: Air: ±24kV / Contact: ±24kV
• Operating Temperature: -5 to 40°C (23 to 104°F)
• Operating Humidity: 5 to 95% non-condensing
• Shock and Vibration: ETSI300-019-1.4 Standard
• PoE Interfaces: PoE+ IEEE 802.3af/at (Pins 1,2+;3,6-)    24VDC Passive PoE (Pins 4,5+;7,8-)
• Max. PoE+ Wattage per Port by PSE: 34.2W
• Voltage Range 802.3at Mode: 50-57V
• Max. Passive PoE Wattage per Port: 17W
• 24V Passive PoE Voltage Range: 20-27V

• (1) Ubiquiti EdgeSwitch 48-Port PoE Switch 750W
• (1) Power Cord
• (4) #10-32 x 5/8" Mounting Screws
• (4) #10-32 x 5/8" Cage Nuts
• (1) Quick Start Guide
