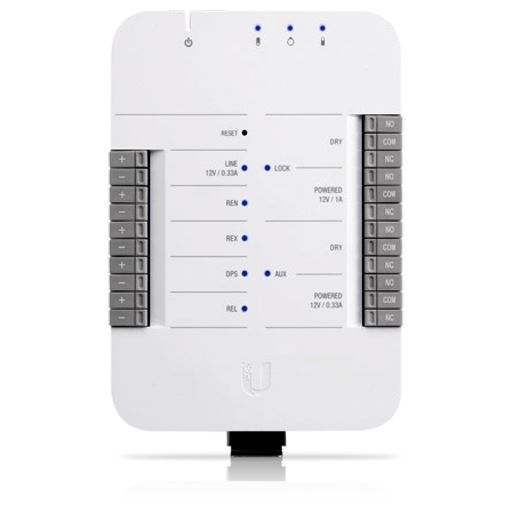

Ubiquiti UniFi Access Door Entry Controller Hub [UA-Hub]

The Ubiquiti UniFi Access Hub comes with versatile interfaces, including support for most electric bolts/strikes, magnetic locks, and 12V access accessories such as motion sensors, push buttons, and alarms. The three Ethernet PoE powered reader interfaces minimize need for wiring work and offer a convenient way to add a UniFi G3-Flex surveillance camera for additional security. The seamlessly integrated UniFi Access solution is managed with UniFi Access Controller software. Easily manage users, visitors, schedules, and access policies with the with the intuitive browser-based interface.

The Ubiquiti UniFi Access is a state-of-the-art access control system powered by native PoE technology. It supports conventional electric bolts/strikes, magnetic locks, and 12V access accessories such as motion sensors, push buttons, and alarms. UniFi Access requires minimal installation effort and offers the convenience of the UniFi Access Controller, which allows you to easily manage users, visitors, schedules, and access policies.

Requires the UniFi Dream Machine Pro to run UniFi Access.

• Powered by 802.3bt (PoE++) switch
• Three 802.3af PoE ports for UniFi readers and G3 Flex surveillance camera
• 12V powered and dry relays compatible with most locks
• Four inputs for motion sensors, request-to-exit devices and door position switch
• Managed with UniFi Access Controller in UDM-Pro
• DIN-rail mounting

• Enclosure Characteristics: Plastic Enclosure with Metal Mount Plate
• Mounting Options: DIN Rail
• Networking Interface: (4) 1 Gbps Ethernet
• Max. Power Consumption: 40W
• Power Method: 802.3bt

• Lock: Output 12VDC, up to 1A
• Aux: Output 12VDC, up to 0.33A
• Line: Output 12VDC, up to 0.33A
• LEDs: (1) System, (3) PoE Out, (4) Input (2) Output Relays, (1) 12VDC Out
• Buttons: Terminal Blocks, Reset
• Operating Humidity: 5 to 90% Non-Condensing
• Operating Temperature: 0 to 40° C (32 to 104° F)
• Certifications: CE, FCC, IC
• NFC Specifications:
• Frequency: 13.56 MHz
• Read Range: <30 mm
• Standards ISO 14443A, 14443B, 15693
• Technology:
• NFC Tag 1, 2, 3, 4, 5
• MIFARE Classic
• MIFARE Plus
• MIFARE Ultralight
• MIFARE DESFire EV1/EV2

• (1) UniFi Access Hub
• (1) Din Rail for UniFi Access Hub
• (2) Self-Tapping Screws
• (2) Screw Anchors
