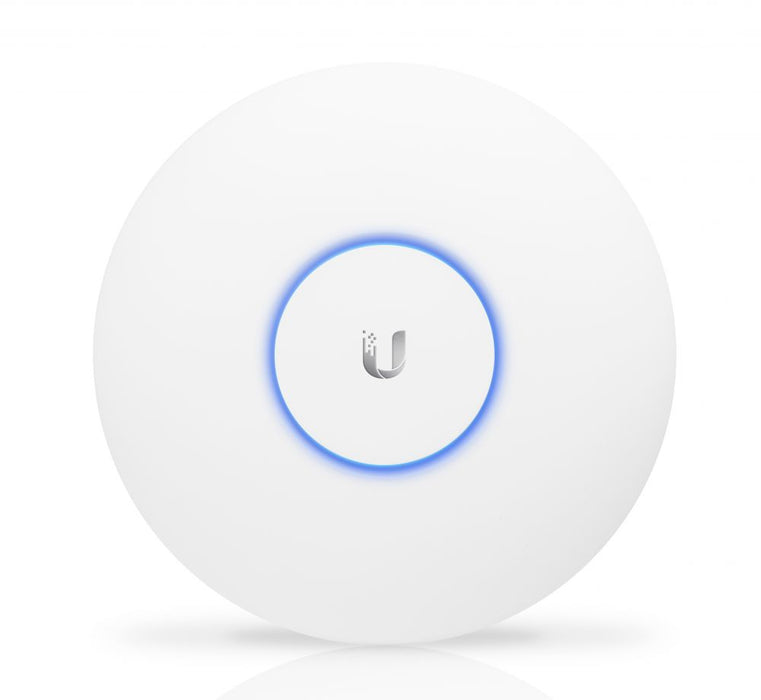

Ubiquiti UniFi PRO Access Point (US Version) [UAP-AC-PRO-US]

Up to 5X Faster with Dual-Radio 3x3 11AC MiMO Technology

The UniFi AC Pro AP is a gigabit, 802.3af-powered access point suitable for indoor or outdoor use. You can easily replace a standard UniFi AP using the same mounting hardware.

The UniFi Controller v4 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.

Product Specifications:

• Networking Interface: (2) 10/100/1000 Ethernet Ports
• Antennas: (3) Dual-Band Antennas, 3 dBi Each
• Max TX Power: 2.4GHz: 22 dBm - 5GHz: 22 dBm
• Buttons: Reset
• Wifi Standards: 802.11 a/b/g/n/ac
• Power Method: Passive Power over Ethernet (48V), 802.3af/803.2at Supported (Supported Voltage Range: 44 to 57VDC)
• Power Supply: 48V, 0.5A PoE Gigabit Adapter
• Maximum Power Consumption: 9W, (20W with optional accessory)
• BSSID: Up to Four Per Radio
• Power Save: Supported
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• Certifications: CE, FCC, IC
• Mounting: Wall and Ceiling
• Operating Temperature: -10 to 70°C (14 to 158°F)
• Operating Humidity: 5 to 95% non-condensing

• VLAN: 802.1Q
• Advanced QoS: Per-User Rate Limiting
• Guest Traffic Isolation: Supported
• WMM: Voice, Video, Best Effort and Background
• Concurrent Clients: 200+

(1) Ubiquiti UniFi AC Pro

(1) Mounting Bracket

(1) Ceiling Backing Plate

(1) Flat Head Screw Set (M3x50, Qty. 4)

(1) Set of Keps Nuts (M3, Qty. 4)

(1)  Set of Screws (M2.9x20, Qty. 4)

(1) Set of Screw Anchors (M3x20, Qty. 4)

(1) Gigabit PoE* (48v, 0.5A) with mounting bracket

(1) Power Cord

(1) Quick Start Guide
